MYUAV,a leading company focusing on innovative tethered drone solutions, has made significant achievements in the field of communication relay drones in recent years.
▶Product Overview
The main function of the tethered power system is to provide safe and reliable power for the UAV to fly for a long period of time. It consists of a tether box and an on-board power supply, in which the tether box contains a winch for retrieval and release, a ground power supply, and a tether cable.
Endurance：The tethered UAV is powered by a ground generator and connected to the ground emergency communication vehicle through an optoelectronic composite cable to achieve uninterrupted power transmission, guaranteeing 24-hour stays in the air and providing reliable emergency communications for disaster relief and rescue, field operations, public security and counter-terrorism, and national defence and military industries.
Hover steadily：The tethered UAV flight control system uses high-precision sensors to accurately measure the 3D velocity, 3D acceleration and 3D angular velocity of the UAV in real time and carry out attitude and position solving, so that the UAV can still maintain a stable hovering working state in various meteorological environments.
Manoeuvrability：Due to its small size and high degree of integration, the tethered UAV can be carried by a small off-road vehicle and quickly arrive at the disaster area or mission area, and even if it encounters road obstruction, it can be deployed flexibly by using the UAV's altitude to guarantee the timely functioning of emergency communications.
▶Detailed parameters
▶Drone
Number of rotors: 6 rotors
RTK hovering accuracy: horizontal ≤ 0.5m, vertical ≤ 0.5m
Maximum Task Load: Maximum task load ≥30Kg (excluding the weight of tethered cable) at 200m altitude.
Maximum working altitude ≥3.5KM; maximum wind level ≥6; UAV waterproof and rainproof performance IP65; support for one-key takeoff, one-key return, planning route automatic flight function, low power automatic return, signal loss automatic return, tethered power outage autonomous landing and other functions; working temperature: -20 ℃ to 50 ℃.
▶Tethered system
●Specialised on-board power supply MP100 - rated output power 10KW, can be fully loaded for a long time.

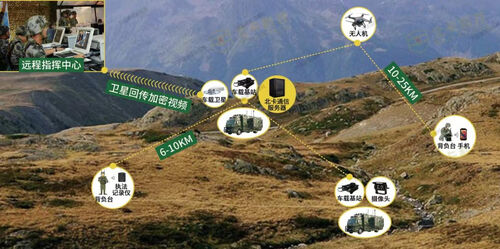

●Tethered base station MJ300 - tethered height Max.210mMain functions: Carrying wireless LAN vehicle station, realising communication relay in complex terrain conditions, and the type of load can be expanded according to the actual situation.
With the advancement of technology, MYUAV will continue to dedicate itself to the development of higher performance and more widely used tethered UAS to promote the development of low altitude economy and bring more convenient and efficient airborne solutions to various industries.
