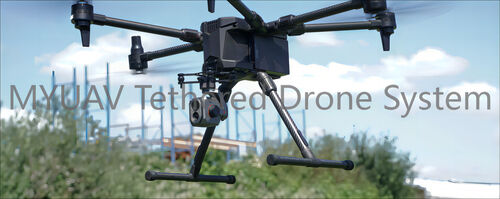

MYUAV 30x surveillance tether drone system

MYUAV 30x surveillance tether drone system

Model：MU9300

Version：V4

Date：2023-1-17

Advantages of the plan

^{1. Long endurance hovering}

^{Ground AC power continues to provide power for unmanned aerial vehicles, hovering in the air for 24 hours.}

^{2. Multiple power supply methods}

^{220V mains power supply, generator power supply or power bank}

^{3. High security}

^{Original non-destructive replacement installation, plug and play, seamless switching of body battery after power failure}

^{4. Multi functions}

^{It can be configured with 10x optical camera, 30x optical camera, dual light camera, which is suitable for traffic, public security, and customs search and inspection work}

• System configuration

^{1. Aircraft set: H850E standard set (including 1 aircraft+2 smart batteries+1 remote controler+1 charging box)}

^{2. Specialized adaptive onboard air power supply}

^{3. Portable tether base station}

^{4. 30x visible light camera}

Details

1.MU9300/ Yuneec drone

^{Flight time: 60 minutes empty, 30 minutes loaded with 3.5kg}

^{Diagonal wheelbase 850mm}

^{Blade type folding quick release blade}

^{Folding size: ≤ 370mm × 365mm × 268mm;}

^{Unfolded size: ≤ 700mm × 770mm × 268mm.}

^{Weight (including battery and blades) 5.8kg}

^{Battery type 12800mAh dual battery design 6S}

^{The maximum flying altitude is 5000m}

^{Maximum net load weight 3.5kg}

^{Maximum takeoff weight 9.3kg}

^{Maximum roll angle 30 °}

^{Maximum horizontal flight speed of 20m/s (Angle mode)}

^{Maximum rising speed of 5m/s}

^{Maximum descent speed of 3m/s}

^{Ground station remote control}

^{Operating System Android 10.0}

^{Screen size 7 inches touch screen}

^{Screen resolution 1080p 1920x1200pix}

^{The maximum brightness of the screen is 1000nit}

^{Hardware parameters Cortex-A72+Cortex-A53}

^{ROM 32GB+RAM 4GB GPS+GLONASS}

^{Maximum transmission distance (no obstruction, no interference) FCC: 15km CE: 8km}

^{Battery 10000mah@7.6v (21700)}

^{Working hours of 5 hours}

^{Weight 1.2kg}

^{External interface USB2.0/USB 3.0/HDMI/Micro SD/Type-C}

^{Operating temperature -20 ° C~50 ° C}

^{Charging temperature from 0 ° C to 50 ° C}

^{Power 10W}

^{Size 210x192x104mm}

^{Remote control distance up to 15km}

^{Number of channels 16 channels}

^{Image signal channel 2.4/5.8GHz OFDM}

2.30x camera E30Zx

^{Weight 518g / 1.1lbs}

^{Operating Temp. -10°C - 40°C / 14°F - 104°F}

^{Camera Sensor 1/28" CMOS, Effective Pixels: 2.13MP}

^{Lens FOV: 63.7°(Wide) - 2.3°(Tele). F:F1.6(WIde) - F4.7(Tele). 30x Optical Zoom + 6x Digital Zoom}

^{Photo Resolutions 16:9 1920x1080}

^{Video Resolutions Codec: H.264. Res:1080P 1920 x 1080 (60FPS, 50FPS, 30FPS, 25FPS)}

^{Photo Formats JPG}

^{Video Formats MP4}

^{Photography Modes Single, Time Lapse}

^{Exposure Mode Auto, Manual, Shutter Priority, Aperture Priority}

^{Exposre Compensation ± 30°}

^{Metering Mode Spot Metering, Average Metering}

^{Electronic Shutter Speed 1/1 - 1/10000S}

^{White Balance Auto, Manual(1000 - 2000K)}

^{ISO Range 100 – 6400}

3.Tethered drone system base station

4. Airborne power supply

Measurement / weight

LxWxH: 148mm（L）× 99mm（W）× 57mm（H） / 0.78kgs

Input

Output

Connection
