MYUAV UAV photovoltaic power plant operation and maintenance management: software deployment solution
Industry overview

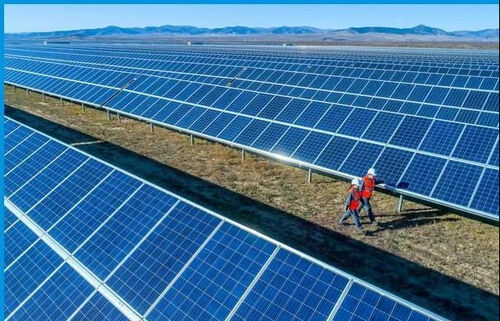

The safe and stable operation of photovoltaic power stations is crucial to ensure the stability of power supply. Photovoltaic modules and equipment in the process of years of use will appear aging, dust or pollutants accumulation, will affect the efficiency of power generation, in order to extend the service life of the equipment, regular inspection is particularly necessary.
Through regular inspection and maintenance, the potential safety hazards of the power station can be discovered in time to prevent accidents. Ensure good ventilation and heat dissipation of equipment to maintain power generation efficiency; The data obtained in the inspection process can also provide data support for the operation and maintenance of photovoltaic power stations and optimize operation and maintenance management. Preventive maintenance prevents equipment from running for a long time in a fault state and reduces maintenance costs.
Overview of PV power station inspection software
Based on B/S architecture, the software uses the framework of "cloud platform + algorithm application container" and artificial intelligence technology to achieve an integrated management and control platform for photovoltaic power station drones and improve the inspection efficiency of power stations.
Based on the advanced dual optical fusion identification model, simultaneous interpretation of dual optical information, comprehensive judgment, accurate identification of string number and defects, accurate positioning, accurate classification, automatic fault classification of risk levels, providing reliable fault diagnosis and location services. In addition, it can generate detailed inspection reports to help plant managers find and solve problems in a timely manner.
Cooperate with intelligent App to realize the needs of first-line team to perform the "last kilometer" navigation of the elimination task, accurately navigate to the group string where the fault is located according to the delivered position, filter out useless information, the display effect is intuitive and not complicated, and automatically generate the elimination report after the inspection is completed.
Aerial and ground inspection data can be transmitted, shared and analyzed in real time, providing more comprehensive and accurate information for power plant operation and maintenance.
Intelligent APP
1. Intelligent flight inspection App
Targeted development for photovoltaic inspection, reduce the difficulty of inspection, no professional flying hands, can also complete the inspection task. The APP can be linked with the back-end platform to realize the interconnection of inspection data and route data.
2. Fault elimination App
The development is based on Android mobile devices, which is convenient for maintenance personnel to carry out tasks such as fault elimination and maintenance navigation with mobile devices.
Software algorithms identify indicators
| type | Detectable item | Identify data source | Identification scheme |
| Component failure | Component heat spots (glass bursts, foreign objects on the surface of the glass, battery fragments, components burned out and shadows, dust, snow and attachments, vegetation, etc., other problems that may exist in batteries, components, strings) | Infrared picture, visible picture | The drone flies autonomously, taking pictures at intervals and importing them into the system at a later stage |
| Diode failure (battery manufacturing causes hot spots, silicon material defects, incomplete edging in the battery manufacturing process, edge short circuit, poor sintering, series resistance diode too large, excessive sintering, PN junction burning through short circuit, mixed with low-efficiency battery, battery attenuation is inconsistent, etc.)） | Infrared picture | ||
| Low current fault (component junction box problem, string overall no power generation) | Infrared picture | ||
| String recognition | Number and position of strings | Orthophoto | Object detection |
| Daily | Foreign invasion | video | Based on infrared or visible profile recognition |
| Fire breaking out | Target detection, infrared high temperature |
