Version：V03
Date:2024-02-10
System applications
Fire extinguishing, curtain wall cleaning, wind turbine blade cleaning, grid insulation spraying, roof cleaning
System Configuration
1. 30kg net load UAV complete set (30m height)
2. 2kw 25MPa high pressure commercial car washing machine
3. 10kw tethered system
4. 380V/12kw rated output power supply or generator with the same parameters (customer configuration)

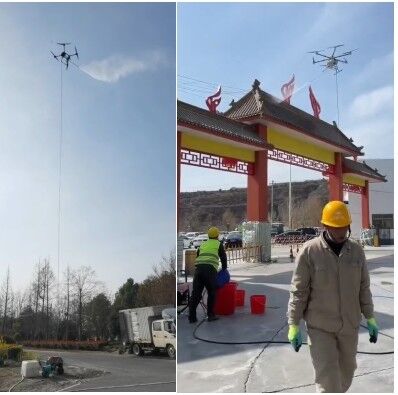

MYUAV Cleaning practice
Parameters
MYUAV Drone technical indicators
Product material: carbon fiber + aviation aluminum alloy
Rotor type: six-rotor (tethered customization)
Wheelbase: 1930mm
Expanded size: 1760*2020*720
Folding size: 1000*1100*720
Empty weight: 26.8KG (including battery weight)
Maximum load: 30kg
Maximum take-off weight: 56.8kg
Positioning system: GPS positioning
Height fixing system: barometer height fixing
Power system: FOC power
Propeller: 34-inch high-efficiency folding propeller
Hovering time: no load 38.5mins, operating time 18mins
Safe wind speed: ≤Level 6
Maximum flight speed: ≤10m/s
Intelligent operation mode: manual/automatic route
Standard remote control: integrated remote control with screen*1
Standard smart battery: (16S 28000mah)*1
Standard charger: one charge
Maximum flight speed: ≤10m/s
Power monitoring: support
Voice broadcast: support
Flight data recording: supported
Image transfer: support
Background data monitoring: support
High-pressure industrial cleaning machine(customer buys locally)
Dimensions: 745x450x500mm
Power: 2KW
Voltage: 220V
Rated pressure range: ≥2.5MPa and ≤25MPa
Range: 8m
Rated flow: 10L/min (inclusive)-15L/min
Suction distance: less than or equal to 2.5M
Motor cooling method: air cooling
Water pipe length: 30 meters outlet no less than 20MPa
Generator: not included (you need to prepare your own generator or other power supply method to power the generator)
MYUAV Tethered drone system
