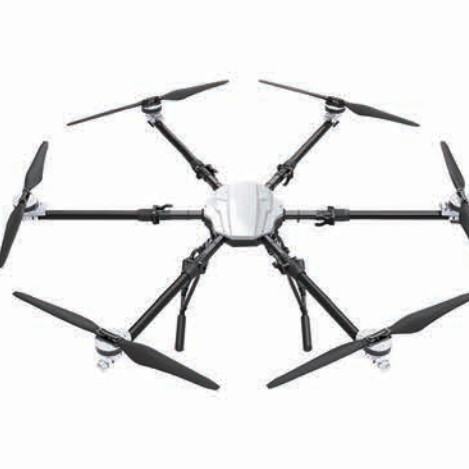

Name: 6 Rotor Multicopter Drone UAV Automatic Flight Mode 30kg Loading 14S
Brand: MYUAV TECHNOLOGIES CO.,LTD.
SKU: MD-30
Price: 15,300.00 USD
Availability: InStock

MOQ:	1
Standard Packaging:	case
Delivery Period:	7 working days
Payment Method:	T/T

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

myuav

Certification

MD-30

Model Number

MD-30

Maximum Take-off Weight:

≥ 55 Kg

Payload:

≥ 30 Kg

Wheelbase:

≤ 1900mm

Folded Dimensions:

≤ 1224*1203*660mm

Frame:

Carbon Fiber Composite Material And Aerospace Aluminum Alloy

Frame Type:

6 Rotor, Or With Single Pitch Stall Protection

Folding Method:

Arm Fold, Blade Can Be Folded

Sea Level Creep Rate:

≥ 3m/s

Maximum Flight Speed:

≥ 12m/s

Elevation Limit:

4000 Meters

Maximum Battery Life:

≥ 60min

Positioning Accuracy:

Vertical And Horizontal ≤ 1m

Degree Of Protection:

IP43

Flight Mode:

Automatic Mode, Satellite Navigation Mode, Automatic Return, Constant Speed And Smooth Flight Automatic Balance Function

Other Functions:

Route Planning, Flight Parameters Adjustment

Number Of Batteries:

≥ 1 Set

Battery Life:

Number Of Charge And Play Cycles ≥ 100 Times

Charger:

Adapter Battery

Charger Power:

≥ 1200W

Remote Control Type:

Figure Remote Topic With Screen Remote Control

Remote Control Distance:

≥5 Km

Image Transmission Distance:

≥5 Km

Screen Size:

≥5.5 Inches

Display Content:

Flight Data, Off-line Map, Gondola Video

Battery Life:

≥ 5 Hours

Highlight:

4 Rotor Multicopter Drone

Multicopter Drone Automatic

Multicopter UAV

Product Description

Multicopter Commercial Drone 30kg Loading 4 Rotor 14S

Products	Module	Technical requirements parameters
UAV flight platform (including airframe, ground remote control and ground support equipment)	Body	(1) Maximum take-off weight ≥ 55 kg
		(2) Payload ≥ 30 kg
		(3) Wheelbase ≤ 1900mm
		(4) folded dimensions ≤ 12241203660mm
		(5) Frame: Carbon fiber composite material and aerospace aluminum alloy
		(6) Frame type: 6 rotor, or with single pitch stall protection;
		(7) folding method: Arm fold, blade can be folded
		(8) Sea level creep rate ≥ 3m/s.
		(9) Maximum flight speed ≥ 12m/s.
		(10) Elevation limit: 4000 meters
		(11) Maximum battery life ≥ 60min
		(12) Positioning accuracy: Vertical and horizontal ≤ 1m
		(13) Degree of protection: IP43
		(14) Flight mode: Automatic mode, satellite navigation mode, automatic return, constant speed and smooth flight automatic balance function;
		(15) Other functions: With electronic fence function
	Batteries and chargers	(1) Number of batteries: ≥ 1 set
		(2) Battery life: Number of charge and play cycles ≥ 100 times
		(3) Charger: Adapter battery
		(4) Charger power: ≥ 1200W
	Remote control	(1) Remote control type: Figure remote topic with screen remote control
		(2) remote control distance: ≥5 km
		(3) Image transmission distance: ≥ 5 km
		(4) Screen size: ≥5.5 inches
		(5) Display content: Flight data, off-line map, gondola video
		(7) Other functions: Route planning, flight parameters adjustment
		(8) battery life: ≥ 5 hours
	Box	(1) Packing box type: Aluminum alloy storage box
		(2) Box size: Can accommodate flight platforms, batteries, service tools and other load-bearing equipment;
		(3) Coating requirements: Equipment nameplate, spraying equipment name.
		(4) Other requirements: Install 4 sets of caster wheels
