Aerial Heavy Lift Drone Motors 300KV High Efficiency Brushless Motor
| Place of Origin | China |
|---|---|
| Brand Name | drone motor |
| Model Number | MY-35120 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Torque | High | Power | High |
|---|---|---|---|
| Noise Level | Low | Speed | High |
| Efficiency | High | Temperature Range | Wide |
| Weight | Heavy | Voltage | High |
| Highlight | Aerial Heavy Lift Drone Motors,Heavy Lift Drone Motors 300KV,300KV High Efficiency Brushless Motor |
||
Product Description
Heavy Lift Drone Motors enhance productivity of Aerial Work Platform Lift

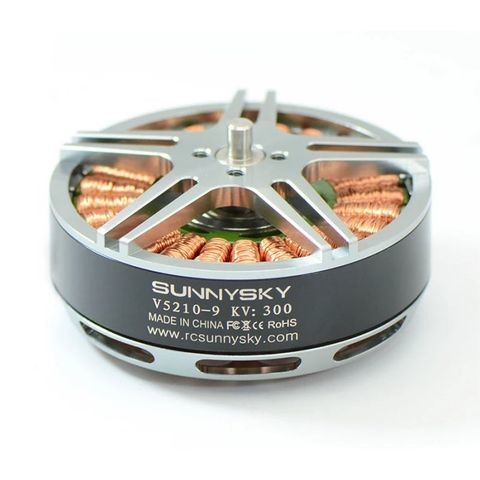

SUNNYSKY V5210 300KV High Efficiency Brushless Motor for Multi-Rotor Drones

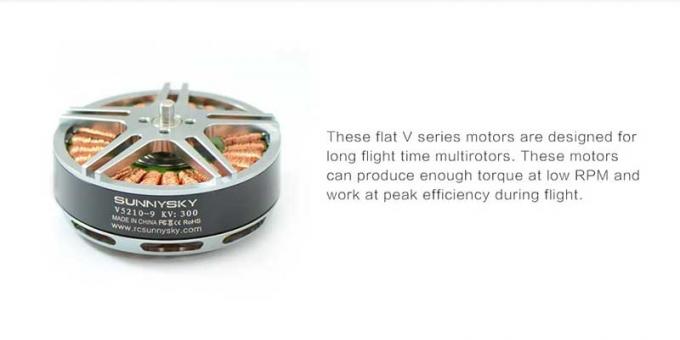

Sunnysky V series of motors are specially designed power for long-endurance multirotor aircraft. Designing style of the whole series are high efficiency, stable stable structure, light weight, high consistency etc.. Those motors can produce enough torque at low RPM and work at peak efficiency during flight.

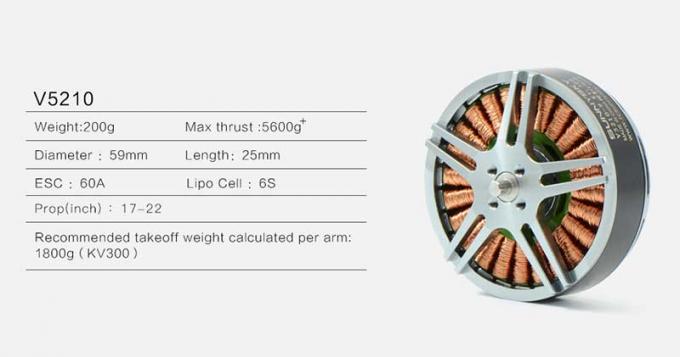

Sunnysky V5210 kv300 brushless motor is compatible with the 17"-22" propellers, the max thrust can reach to 5600g. We suggest you
| Motor Model / KV | V5210/ KV300 |
|---|---|
| Stator/Rotor Poles | 24N28P |
| Internal resistance | 76mΩ |

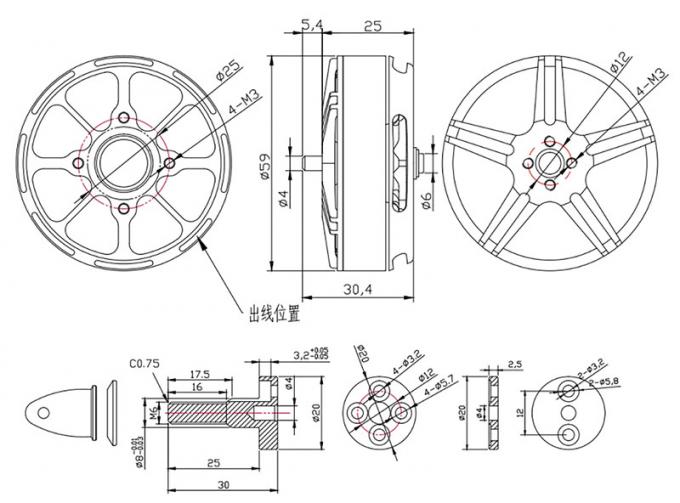

| Motor size | φ59*31.1mm |
| Shaft diameter | 4.0mm |
| AWG | 20AWG 600mm |
| Motor weight(wire included) | 200g |
| Motor weight(wire excluded) | No data |
| Rated operational voltage | 4-6S |
| No-load current | 0.9A/10V |
| Maximum continuous power | 1100W |
| Maximum continuous current | 44A/30s |
| ESC recommended use | 40-60A |
| Propeller size recommended use | 17 “ 18” 20“ 22” Propellers |
| Prop(inch) | Voltage(V) | RPM | Amps(A) | Thrust(gf) | Watts(W) | Efficiency(g/W) | Load temperature in 100% throttle |
|---|---|---|---|---|---|---|---|
| EOLO CN17*6.2 | 22.2 | 2344 | 1.7 | 500 | 38 | 13.25 | 60℃ |
| 2831 | 2.9 | 750 | 64 | 11.65 | |||
| 3266 | 4.3 | 1000 | 95 | 10.48 | |||
| 3585 | 5.75 | 1250 | 128 | 9.79 | |||
| 3969 | 7.4 | 1500 | 164 | 9.13 | |||
| 4247 | 9.1 | 1750 | 202 | 8.66 | |||
| 4492 | 11.2 | 2000 | 249 | 8.04 | |||
| 4765 | 13.2 | 2250 | 293 | 7.68 | |||
| 5000 | 15.5 | 2500 | 344 | 7.27 | |||
| 5337 | 18.2 | 2806 | 404 | 6.94 | |||
| 25 | 2274 | 1.6 | 500 | 40 | 12.50 | ||
| 2813 | 2.65 | 750 | 66 | 11.32 | |||
| 3201 | 3.8 | 1000 | 95 | 10.53 | |||
| 3546 | 5.2 | 1250 | 130 | 9.62 | |||
| 3901 | 6.7 | 1500 | 168 | 8.96 | |||
| 4195 | 8.3 | 1750 | 208 | 8.43 | |||
| 4445 | 10 | 2000 | 250 | 8.00 | |||
| 4716 | 12 | 2250 | 300 | 7.50 | |||
| 5000 | 13.9 | 2500 | 348 | 7.19 | |||
| 5292 | 16.1 | 2750 | 403 | 6.83 | |||
| 5519 | 18.2 | 3000 | 455 | 6.59 | |||
| 5858 | 21.8 | 3390 | 545 | 6.22 | |||
| EOLO C18 | 22.2 | 2180 | 1.6 | 500 | 36 | 14.08 | 80℃ |
| 2606 | 2.8 | 750 | 62 | 12.07 | |||
| 2974 | 4.1 | 1000 | 91 | 10.99 | |||
| 3363 | 5.5 | 1250 | 122 | 10.24 | |||
| 3684 | 7.2 | 1500 | 160 | 9.38 | |||
| 3998 | 8.9 | 1750 | 198 | 8.86 | |||
| 4279 | 10.9 | 2000 | 242 | 8.27 | |||
| 4528 | 12.9 | 2250 | 286 | 7.86 | |||
| 4768 | 15 | 2500 | 333 | 7.51 | |||
| 5003 | 17.6 | 2750 | 391 | 7.04 | |||
| 5246 | 19.8 | 3000 | 440 | 6.83 | |||
| 25 | 2200 | 1.5 | 500 | 38 | 13.33 | ||
| 2616 | 2.5 | 750 | 63 | 12.00 | |||
| 3014 | 3.7 | 1000 | 93 | 10.81 | |||
| 3400 | 5 | 1250 | 125 | 10.00 | |||
| 3694 | 6.4 | 1500 | 160 | 9.38 | |||
| 3973 | 7.9 | 1750 | 198 | 8.86 | |||
| 4264 | 9.6 | 2000 | 240 | 8.33 | |||
| 4534 | 11.4 | 2250 | 285 | 7.89 | |||
| 4770 | 13.5 | 2500 | 338 | 7.41 | |||
| 4980 | 15.45 | 2750 | 386 | 7.12 | |||
| 5182 | 17.6 | 3000 | 440 | 6.82 | |||
| 5759 | 24 | 3670 | 600 | 6.12 | |||
| EOLO C20 | 22.2 | 1849 | 1.5 | 500 | 33 | 15.02 | 100℃ |
| 2247 | 2.5 | 750 | 56 | 13.51 | |||
| 2560 | 3.7 | 1000 | 82 | 12.17 | |||
| 2893 | 5.1 | 1250 | 113 | 11.04 | |||
| 3152 | 6.6 | 1500 | 147 | 10.24 | |||
| 3411 | 8.2 | 1750 | 182 | 9.61 | |||
| 3585 | 10.15 | 2000 | 225 | 8.88 | |||
| 3850 | 12.2 | 2250 | 271 | 8.31 | |||
| 4050 | 13.9 | 2500 | 309 | 8.10 | |||
| 4234 | 16.3 | 2750 | 362 | 7.60 | |||
| 4401 | 18.8 | 3000 | 417 | 7.19 | |||
| 4928 | 26.3 | 3790 | 584 | 6.49 | |||
| 25 | 1818 | 1.3 | 500 | 33 | 15.38 | ||
| 2265 | 2.3 | 750 | 58 | 13.04 | |||
| 2611 | 3.4 | 1000 | 85 | 11.76 | |||
| 2870 | 4.65 | 1250 | 116 | 10.75 | |||
| 3182 | 6 | 1500 | 150 | 10.00 | |||
| 3391 | 7.4 | 1750 | 185 | 9.46 | |||
| 3627 | 8.9 | 2000 | 223 | 8.99 | |||
| 3806 | 10.65 | 2250 | 266 | 8.45 | |||
| 4038 | 12.7 | 2500 | 318 | 7.87 | |||
| 4201 | 14.7 | 2750 | 368 | 7.48 | |||
| 4435 | 16.7 | 3000 | 418 | 7.19 | |||
| 4825 | 21.1 | 3500 | 528 | 6.64 | |||
| 5079 | 26 | 4000 | 650 | 6.15 | |||
| 5380 | 31.3 | 4531 | 783 | 5.79 | |||
| EOLO CN22*6.2 | 22.2 | 1481 | 1.3 | 500 | 29 | 17.33 | 124℃ 1min |
| 1760 | 2.2 | 750 | 49 | 15.36 | |||
| 2038 | 3.35 | 1000 | 74 | 13.45 | |||
| 2311 | 4.6 | 1250 | 102 | 12.24 | |||
| 2540 | 5.9 | 1500 | 131 | 11.45 | |||
| 2501 | 7.5 | 1750 | 167 | 10.51 | |||
| 2868 | 9.1 | 2000 | 202 | 9.90 | |||
| 3053 | 10.9 | 2250 | 242 | 9.30 | |||
| 3234 | 12.9 | 2500 | 286 | 8.73 | |||
| 3316 | 14.9 | 2750 | 331 | 8.31 | |||
| 3515 | 17.2 | 3000 | 382 | 7.86 | |||
| 3776 | 22 | 3500 | 488 | 7.17 | |||
| 4034 | 27.7 | 4000 | 615 | 6.50 | |||
| 4399 | 36.9 | 4820 | 819 | 5.88 | |||
| 25 | 1502 | 1.2 | 500 | 30 | 16.67 | ||
| 1789 | 2 | 750 | 50 | 15.00 | |||
| 2060 | 3 | 1000 | 75 | 13.33 | |||
| 2308 | 4.2 | 1250 | 105 | 11.90 | |||
| 2515 | 5.4 | 1500 | 135 | 11.11 | |||
| 2700 | 6.7 | 1750 | 168 | 10.45 | |||
| 2892 | 8.2 | 2000 | 205 | 9.76 | |||
| 3065 | 9.8 | 2250 | 245 | 9.18 | |||
| 3233 | 11.5 | 2500 | 288 | 8.70 | |||
| 3363 | 13.6 | 2750 | 340 | 8.09 | |||
| 3536 | 15.5 | 3000 | 388 | 7.74 | |||
| 3788 | 19.9 | 3500 | 498 | 7.04 | |||
| 4065 | 25 | 4000 | 625 | 6.40 | |||
| 4517 | 36.5 | 5000 | 913 | 5.48 | |||
| 4710 | 43.8 | 5623 | 1095 | 5.14 |
