MYUAV DRONE Long Endurance Tethered Drone / Uav

MYUAV Long Endurance Tethered Drone/Uav

30 kg load capacity

The maximum load capacity can reach 30KG. It supports the installation and exchange of Megaphone, photoelectric pod, matrix lighting, gas detector and other loads to meet the industrial application needs of emergency rescue, repair and emergency rescue.

Intelligent KX Flight Control
The KX autopilot adopts aviation grade manufacturing technology; Adopting a modular design of core board and expansion board; Equipped with a series of emergency protection measures such as GPS failure autonomous landing, link failure autonomous return, low voltage autonomous return, and intelligent fault diagnosis; Ensure human-machine safety.

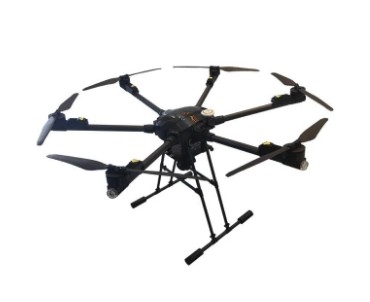

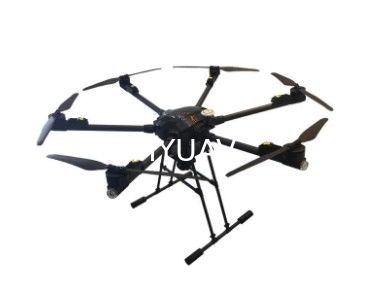

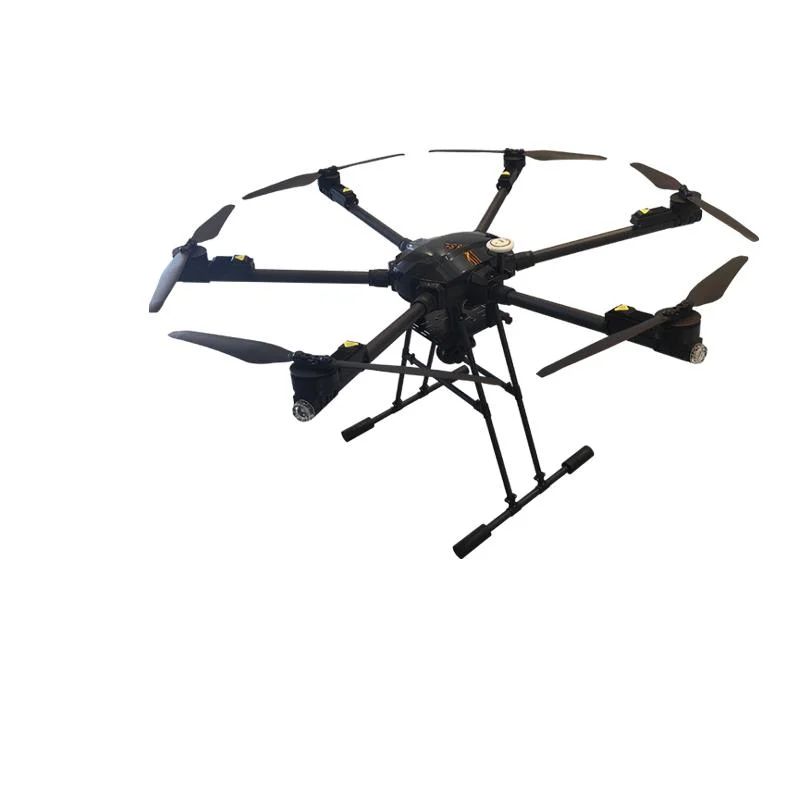

Carbon fiber integration
The X6S six rotor drone adopts a high-temperature molded carbon fiber integrated molding process, and the high specific strength and high specific stiffness characteristics of carbon fiber composite materials can greatly ensure the lightweight, miniaturization, and high performance of the drone structure.

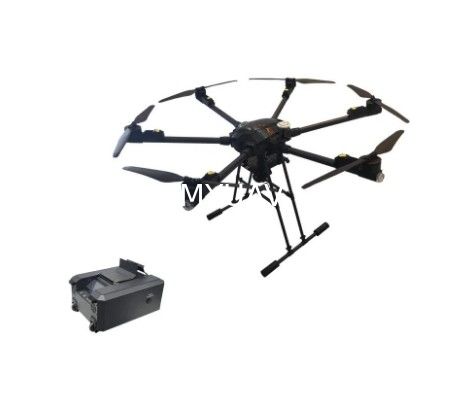

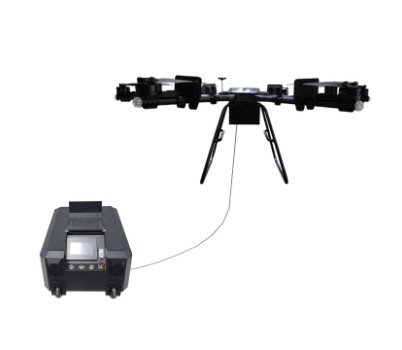

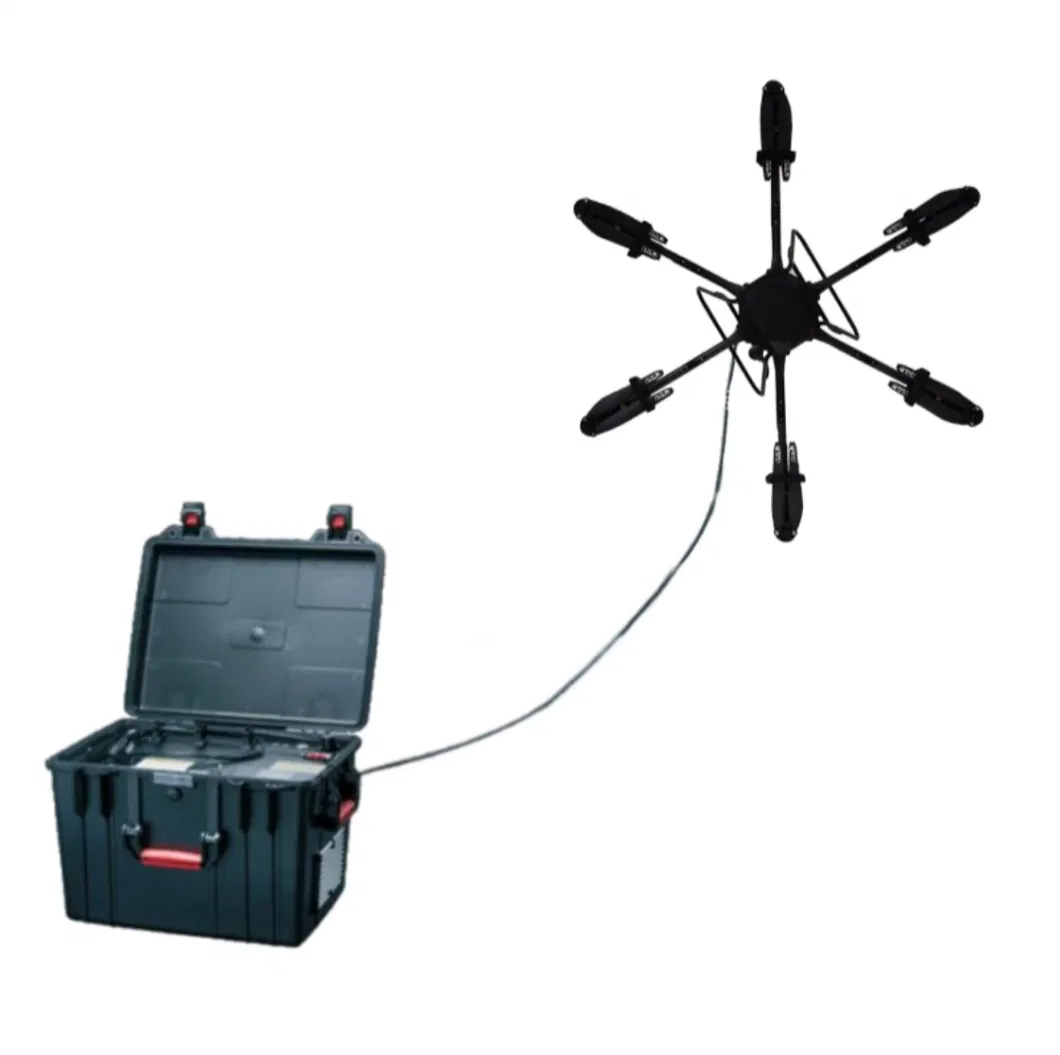

Tethered power supply/lithium battery power supply
Support dual modes of tethered power supply and independent lithium battery power supply. In tethered power supply mode, provide continuous drone power supply and support 24-hour hovering in the air; In the independent lithium battery power supply mode, it provides a maximum no-load endurance of 60 minutes.

Body material: carbon fiber+aluminum alloy;
Wheelbase: 1880mm;

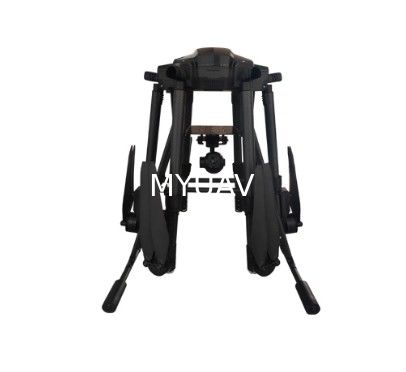

Folding size: 720*720*630mm;
Maximum takeoff and landing altitude: 5500m;
Endurance (load weight @ lithium battery powered endurance): no-load @ 60min and
5KG@30min ;
Empty weight: 17kg (excluding battery 1.5kg)
Cruise speed: 0-20m/s
Battery life retention power supply: 24 hours

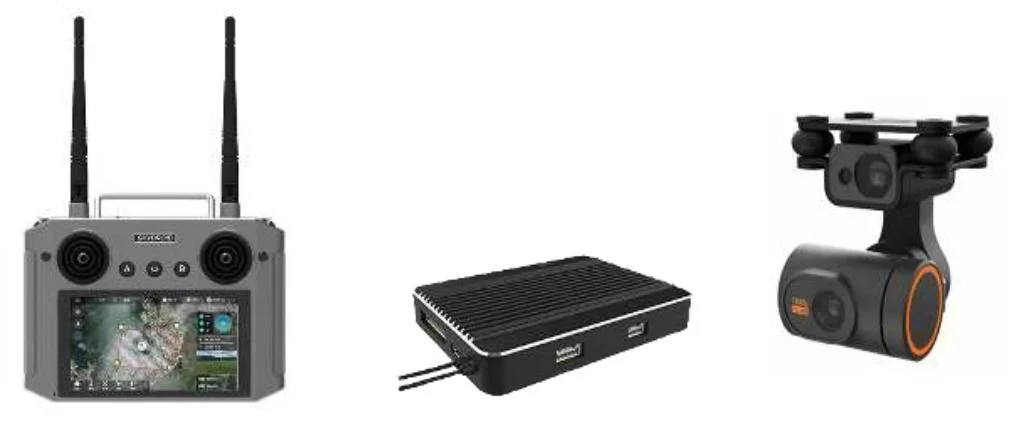

The H12 series digital image transmission remote control adopts a brand new surging processor, is equipped with an Android embedded system, uses advanced SDR technology and super protocol stack, making image transmission clearer, with lower latency, longer distance, and stronger anti-interference. The H12 series remote control is equipped with a dual axis camera, supporting 1080P digital high-definition image transmission; Thanks to the dual antenna design of the product, the signals complement each other, and combined with advanced frequency hopping algorithms, the communication ability of weak signals is greatly increased.

1080P digital high-definition image transmission
The H12 series remote control is equipped with a dual axis camera to achieve stable transmission of 1080P real-time digital high-definition video.

Ultra long transmission distance
The H12 digital integrated link can transmit up to 10km;

Waterproof and dustproof design
The product has been protected against water and dust at the body, control switches, and various peripheral interfaces.

Industrial level equipment protection
Developed using meteorological silicone, frosted rubber, stainless steel, and aviation aluminum alloy materials to ensure equipment safety.

High definition and high brightness display screen

inch IPS display screen. 2000nits highlighted, 1920 × 1200 resolution, large screen size.

High performance lithium battery
Equipped with high energy density lithium-ion batteries and 18W fast charging, it can operate for 6 to 20 hours at full charge.

Remote control parameters
Product model: H12
Working voltage: 4.2V
Frequency range: 2.400~2.483GHZ
Upgrade: APP online upgrade
Size: 272*183*94mm
Range: 6-20 hours
Number of channels: 16
RF power: 20DB@CE / 23DB@FCC
Frequency hopping: New FHSS frequency modulation
Weight: 1034g
Battery: 20000mA/h
Communication distance: 10km
Charging interface: TYPE-C

Receiver parameters
Product model: R12
Working voltage: 7.2-72V
RF power: 20DB@CE / 23DB@FCC
Number of channels: 12
Size: 76*59*11mm
Weight: 90g

MIPI camera
Product model: MIPI
Working voltage: 14-72V
Working current (light on) 140mA
Working current (without lights on) 14mA
Size: 102.1*42.6*36.5mm
Weight: 55g
