MYUAV Multi Function Tethered Unmanned Aerial Vehicle (Uav)
| Place of Origin | China |
|---|---|
| Brand Name | myuav |
| Certification | ISO 9001, ISO 14001 |
| Model Number | H5 |
| Minimum Order Quantity | 1 epc |
| Price | 7000usd |
| Packaging Details | case |
| Delivery Time | 14 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Weight | 5800 Gram, Inclusive 2 Flight Batteries (w/o Payload) | MTOW | 8800g |
|---|---|---|---|
| Max Payload Weight | 3000g | Diagonal Size | 850mm |
| Max Flight Time | 65 Minutes (without Payload) | Position System | GPS, Glonass, Beidou&Galileo |
| Highlight | Multi Function Tethered UAV,Unmanned Aerial Vehicle Tethered UAV,Multi Function Unmanned Aerial Vehicle |
||
Product Description

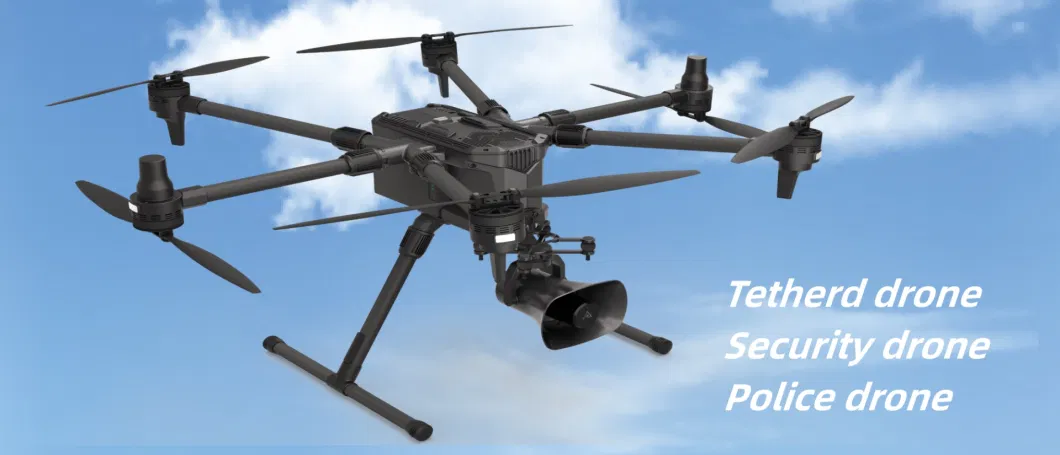

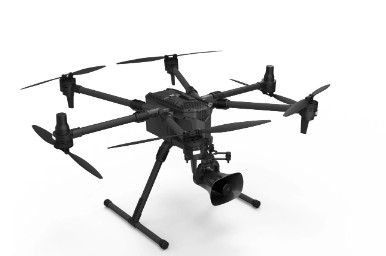

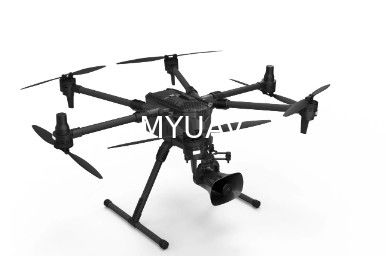

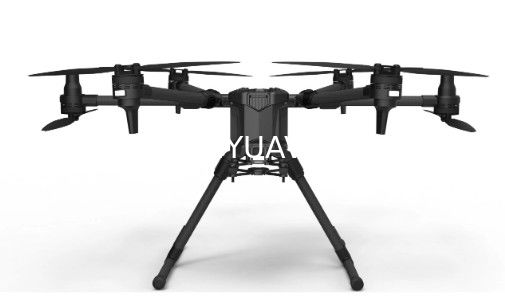

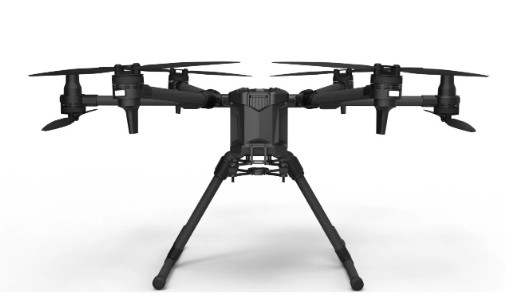

MYUAV Multi-function Tethered Unmanned Aerial Vehicle (Uav)
The new H850-RTK is designed specifically with inspections, surveying, public safety applications and fawn rescue in mind.

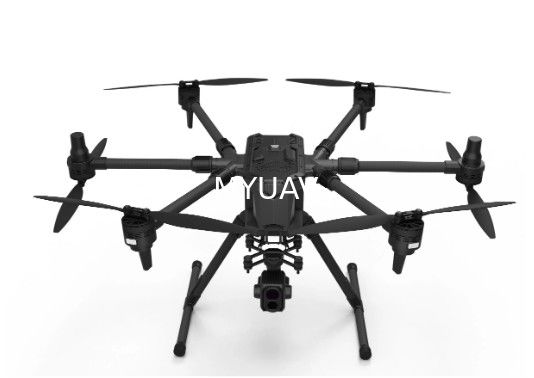

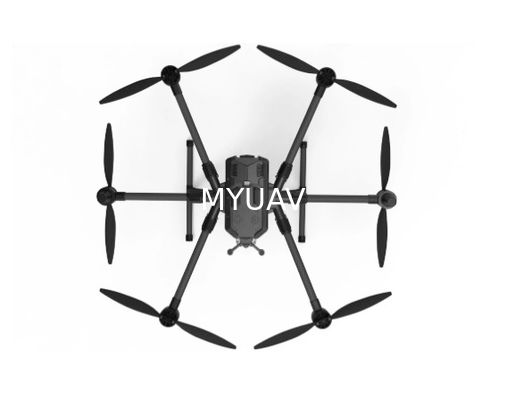

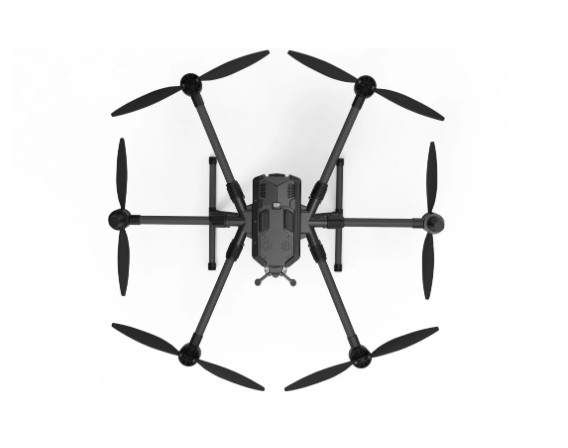

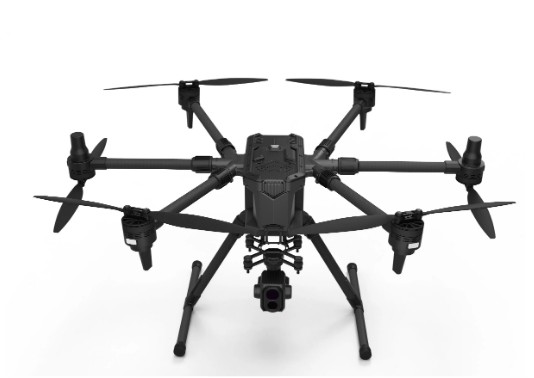

Our hexacopter design offers more safety, power, efficiency, stability and capacity to carry heavier payloads. Depending on the payload and weather conditions, flight times up to 65 minutes are possible. All H520E payloads are compatible with the H850-RTK. This makes it easier for you to use our payloads on two different platforms: the H520E& the H850.
In addition to the performance and payload flexibility, great emphasis was placed on the H850 flight and data security when developing it. Flight data belongs to you and to nobody else.
The H850 is equipped with a dual IMU, compass, barometer, dual RTK antennas and two smart batteries. Even with only five motors running you are able to land the H850 safely.
SPECIFICATIONS
Weight: 5800 gram, inclusive 2 flight batteries (w/o payload)
MTOW: 8800g
Max Payload Weight: 3000g
Diagonal Size: 850mm
Unfolded: 440×365×470 mm
Max Ascend Speed: 3 m/s
Max Descent Speed: 2-5 m/s
Max Horizontal Speed: 20 m/s
Max Flight Speed: 72 km/h
Max Wind Resistance: 72 km/h
Max. Flight Ceiling (MSL): 5000m
Max Flight Time: 65 minutes (without payload)
Battery: 2x Li-ion HV, 6S, 12800mAh, 23.1v(3.85v/Cell)
Position System: GPS, Glonass, Beidou&Galileo
Hovering Accuracy (Single): Horizon:±0.5m Vertical:±0.5m
RTK(RMS) Accuracy: 1cm +1ppm(H); 1.5cm+1ppm(V)
Operating Temperature: -20ºC-50ºC -4° F -122° F
Payload Connector: X-connector
Compatible Payloads : E20TVx, E90X, E30Zx, ETx Pro,
S42x, LIDAR, Spotlight and digital loudspeaker
Upward Gimbal: Optional
Hot-swappable Batteries & Payloads: Yes
IP: 45
Collision Avoidance System: Millimeter-wave Radar (optional)
Remote Controller: T-One
GMAC 1000Mb, USB-C, USB-3 5Gbps, Aux 3.5 mm, Micro-SD,
Connectivity Ports and Power Supply H850: 2x Power 5v+GND, 2x PWM,2x GPIO, 5v,12v&19,8-26,4v,for external devices with high power requirements.
Operating Frequency: 2.4000-2.4835GHz & 5.725-5.850GHz
Autopilot: PX4 Based
Drone Remote Identification Device (EU): LTE+Bluetooth, incl. app and U-space ready (optional module)
FAQ
**Q1: What is the tethered drone of Maiuway Technology? **.
**A1:** Maguway Technology Nanjing Co., Ltd. is a professional company specializing in the development and production of tethered unmanned aerial vehicle (UAV), which is a kind of UAV system that can stay in the air for a long time and provide stable power supply through continuous connection with the ground station through cables. This type of drone is not limited by battery life and is suitable for performing a variety of tasks that require sustained operations, such as communication relay, monitoring, lighting, mapping and so on.
**Q2: What is the maximum payload of a Maguway tethered UAV? **.
**A2:** The company has successfully developed a number of tethered UAVs in different payload classes, including but not limited to the 12KW-60KG high payload tethered UAVs and the 30kg tethered relay UAVs communication system. This means they can carry payloads ranging from a few kilograms to tens of kilograms to meet the needs of different application scenarios.
**Q3: How is the Maguway tethered drone powered? **.
**A3:** Maguway's tethered drones are connected to ground power via a dedicated cable, which not only transmits data signals, but also provides continuous power to the drones in real time, so as to achieve long-term or even all-weather uninterrupted flight.
**Q4: What are the application scenarios of Maguway's tethered drones? **.
**A4:** MaiYUwe tethered UAVs are used in a wide range of scenarios, including but not limited to:
- Long-term aerial surveillance and reconnaissance
- Provide relay services as a temporary or emergency communication base station
- Night lighting and search and rescue operation support
- Terrain mapping and environmental monitoring
- Automation tasks for specific industries, such as intelligent spraying
**Q5: Is Maguway still developing new tethered drone technologies or products? **.
**A5:** Yes, Maiuway Technology has been continuously innovating and developing, such as their AI tethered UAV spray system and the on-board power system of 30kW tethered UAV under development, which show that the company continues to broaden the application field and technology boundaries of tethered UAVs. We are committed to providing customers with advanced UAV solutions with higher loads, longer endurance and more functions.
