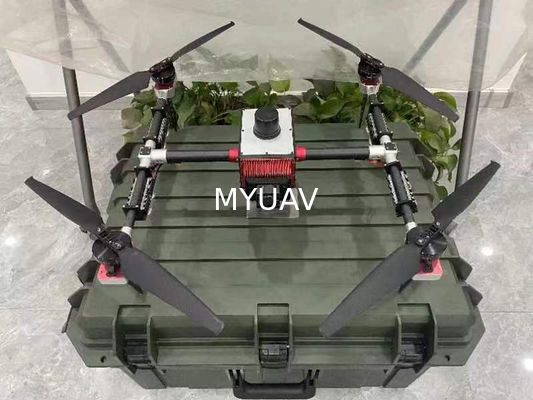

The MYUAV Portable Emergency Lighting tethered UAV weighs about 3.2kg and is wind resistant

The MYUAV Portable Emergency Lighting tethered UAV weighs about 3.2kg and is wind resistant

1 Symmetrical motor wheelbase: 600mm

2. Number of axes: 4

3. Weight: about 3.2kg

4, hover accuracy: vertical (RTK positioning) ≤0.1m, horizontal (RTK positioning) ≤0.1m

5, limit the rise speed: 1m/s

6, limit the decline speed: 1 m/s

7, the maximum wind resistance level: 5

8, the maximum take-off altitude: not less than 4500 m

9, motor: 5008 kv340 brushless waterproof motor, bearing anti-water corrosion design

10, control link: digital transmission, image, remote control integrated with screen ground station, transmission

distance 5km; Equipped with airborne 2-axis head

11, continuous working time: the continuous flight time is not less than 12h

12, diversion battery: 6s 2200mah, for diversion flight time of 5 minutes

13, diversion alarm: when the ground power supply fails, automatically switch to the diversion battery, and automatically switch to the low-power lighting mode, while the light flashes to remind, the aircraft automatically executes the descent command (can also be manually operated to take over)

The single-phase or three-phase alternating current can be converted into DC high voltage, transmitted to the onboard power supply of the UAV through the power supply line, and converted into the DC voltage used by the unmanned aircraft, which can continue to supply power to the unmanned aircraft, and cooperate with the backup battery to achieve continuous and uninterrupted work on the basis of safety.

FAQ

**Q1: What is MyUAV Portable Emergency Lighting Tethered UAV? **.
**A1:** The MyUAV Portable Emergency Lighting Tethered UAV is an innovative unmanned aerial system designed specifically for emergency response scenarios. It is equipped with an efficient aerial lighting module and is connected to the ground power supply system via a secure tethered cable for long, efficient aerial lighting operations. The UAV is not only easy to carry and deploy quickly, but also provides large-area, high-brightness lighting support in a variety of complex environments, such as night search and rescue, disaster sites, and field work areas.

**Q2: How is the portability of MyUAV tethered drones reflected? **.
**A2:** The MyUAV Portable Emergency Lighting Tethered UAV features a compact design that allows all key components to easily fit into a customized transport case, allowing frontline personnel to quickly carry them wherever they need them. The UAV body, tethered cable management system, ground power supply device and remote control equipment all have good portability and integration characteristics.

**Q3: What is the endurance of the drone? Do you rely on batteries to fly? **.
**A3:** The MyUAV Portable Emergency lighting Tethered UAV does not need to rely on its own battery to fly, but through the tethered cable from the ground uninterrupted power supply, so in theory, it can achieve 24 hours of continuous work, avoiding the traditional UAV due to battery life limitations and frequent replacement or charging problems.

**Q4: How high can it provide lighting? **.
**A4:** Depending on the model, the maximum altitude of MyUAV teaming UAV can reach tens or even hundreds of meters, which can provide a broad lighting coverage area at such a height, effectively meeting the needs of large-scale night lighting.

**Q5: How to ensure the stability and safety of drones in bad weather? **.
**A5:** The MyUAV Emergency Lighting Tether uses rugged design materials and advanced weather resistance technology, enabling it to hover and operate stably in a certain level of wind speed, rain and snow conditions. In addition, the built-in safety mechanism automatically adjusts the flight attitude or descent height when the safety threshold is exceeded, ensuring the safety of the UAV and its lighting system during use.
