MYUAV Tethered Drone Station High Quality And Costant Voltage Tether Power Station For Dji M350
| Place of Origin | China |
|---|---|
| Brand Name | Myuav |
| Certification | ISO 9001, ISO 14001 |
| Model Number | TPS110M-M350 |
| Minimum Order Quantity | 1 epc |
| Price | 7800usd |
| Packaging Details | Carton box |
| Delivery Time | 14 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Air Module Output Voltage | 51.5V | Air Module Protection Level | IP54 |
|---|---|---|---|
| Specification | 550*420*260mm | Air Module Iutput Voltage | 580~810V |
| Transport Package | Carton BOX | ||
| Highlight | High Quality Tethered Drone Station,Costant Voltage Tethered Drone Station,M350 Tethered Drone Station |
||
Product Description
High Quality And Costant Voltage Tether Power Station For DJI M350
This is a rugged tether station compatible with the DJI Matrice 350. With a 110m micro-tether and resistance to poor weather conditions, it provides an uninterupted working capability for hours.
I.Typical Characterist
1.It is small size ,light weight and backpack storage.it is easy to carry.
2.Simple operations,the entire process of drone taking off and landing does not require the operation of ground module .
3.Comprehensive input /output protection,fault elimination and self recover.
4.Fully automatic take up and pay off function,the wire can be rewound under power loss.
5.The air module power supply has a constant voltage output,and the back u
p battery has no charging and discharging phenomenon.
II,Adapted M350 drone.
1.Supporting flight duration:≥24h.
2.Supporting flight altitude:≥50/100/150m(tethered cable length:55/110/160m,Reserve safe length).
3.Optional lighting group:640w or 1280w
III,Function characteristics
1.Protection functions:Separate design for strong and weak electricity.input overvoltage and undervoltage protection,output overvoltage ,output overcurrent,output circuit,output over temperature protection.input and output voltage resistance ≥3000VDC,tethered cable insulation voltage resistance≥3500VDC.
2.Data communication:wired and wireless communication function.Support remote display and control,client-side data viewing and downloading.
3.Data display function:The touch screen displays data such as output voltage,output current,output power, cable outlet length,working duration,installation temperature,total power consumption,fault record,and working status information.
4.Set and adjustment:the display screen supports setting and adjustment the parameters such as take-up and payoff tension and speed,data and time,output voltage,safety lengths,warning temperature,ect...,and support the switching between Chinese and English.
5.Alerts and reminds:Failure the screen displays the contents of the fault,the buzzer strong sound reminder.
6.Automatic take-up and payoff:following take off and landing of the drone to synchronously tethered cable take-up and payoff,adjusting the tension auto management,and manually press the button to reaction the cable while power cut off.

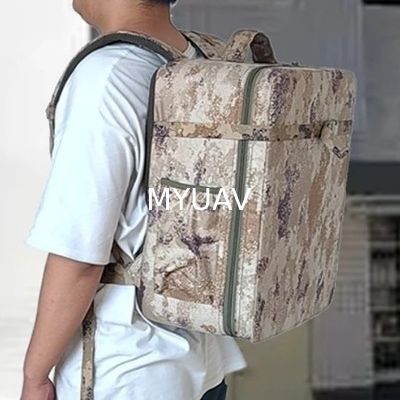

7.Carry and transport:Equipment portability,with a backpack design,it can be equipped with a complete set of tethered power system. 8.Power supply can be equipped with 5800W/7000Wh, outdoor mobile power or 4300W/6L gasoline inverter generator (specification attached).
3.Comprehensive input /output protection,fault elimination and self recover.
4.Fully automatic take up and pay off function,the wire can be rewound under power loss.
5.The air module power supply has a constant voltage output,and the back u
p battery has no charging and discharging phenomenon.
II,Adapted M350 drone.
1.Supporting flight duration:≥24h.
2.Supporting flight altitude:≥50/100/150m(tethered cable length:55/110/160m,Reserve safe length).
3.Optional lighting group:640w or 1280w
III,Function characteristics
1.Protection functions:Separate design for strong and weak electricity.input overvoltage and undervoltage protection,output overvoltage ,output overcurrent,output circuit,output over temperature protection.input and output voltage resistance ≥3000VDC,tethered cable insulation voltage resistance≥3500VDC.
2.Data communication:wired and wireless communication function.Support remote display and control,client-side data viewing and downloading.
3.Data display function:The touch screen displays data such as output voltage,output current,output power, cable outlet length,working duration,installation temperature,total power consumption,fault record,and working status information.
4.Set and adjustment:the display screen supports setting and adjustment the parameters such as take-up and payoff tension and speed,data and time,output voltage,safety lengths,warning temperature,ect...,and support the switching between Chinese and English.
5.Alerts and reminds:Failure the screen displays the contents of the fault,the buzzer strong sound reminder.
6.Automatic take-up and payoff:following take off and landing of the drone to synchronously tethered cable take-up and payoff,adjusting the tension auto management,and manually press the button to reaction the cable while power cut off.
7.Carry and transport:Equipment portability,with a backpack design,it can be equipped with a complete set of tethered power system. 8.Power supply can be equipped with 5800W/7000Wh, outdoor mobile power or 4300W/6L gasoline inverter generator (specification attached).
IV,Parameters
| items | Technical parameters | |||
| Model | TPS55M-M350 | TPS110M-M350 | TPS160M-M350 | |
| Cable length | 55M | 110M | 160M | |
| Ambient temperature | -20~45ºC(working),-40~65ºC(storage) | |||
| Relative humidity | 10~80%RH(working),5~90%RH(storage) | |||
| Altitude | ≤3000m | |||

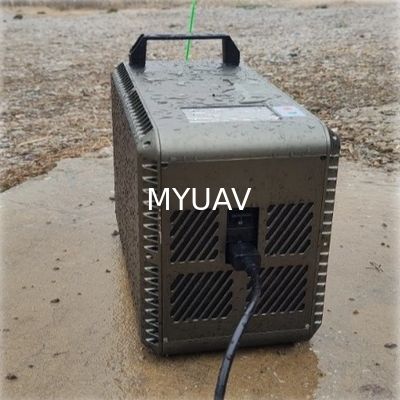

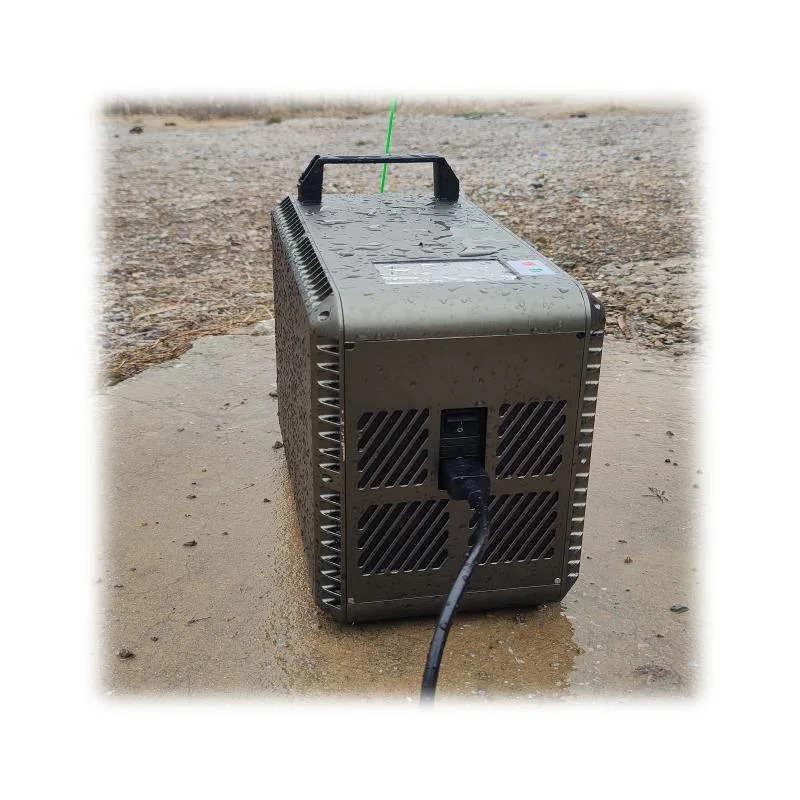

| Ground power module | Input voltage | 190~240Vac wide range input,single-phase 220Vac,frequency 50/60Hz | ||
| Output voltage | 600~800Vdc adjustable,Factory Default 800Vdc | |||
| Output power | ≥3500W(Rated Long-Time Output),≥4000W(peak value≮30s) | |||
| take-up and payoff speed | 0~2m/s,adjustable | |||
| take-up and payoff tensile | 0~10N,adjustable | |||
| interface | Input switched 3-pole socket,tethered cable output XT60 connector | |||
| Button and switch | High-voltage on/off button,cable forced retraction button,back up battery button | |||
| Protection level | IPx4 | |||
| Size | D360×W180×H260±0.5mm,excluding foot pads and handles | |||
| Weight | 8.5±0.2kg,excluding tethered cable | |||
| Tethered cable | Material | Silver plated lightweight high-temperature resistant aviation wire,lightweight high-temperature resistant sheath. | ||
| Current | 3~5A | |||
| DC resistance | 10.5±0.2Ω,100m@20ºCloop | |||
| Resistance Tensile strength | ≥20kg,resistant to repeated reaction and release times≥500 | |||
| Insulation strength | ≥3500Vdc,1min, no breakdown | |||
| Cable length | standard equipment 55m,optional 110m and 160m | |||
| Outer diameter | 2.3±0.1mm | |||
| Weight | 10±0.5g/m | |||

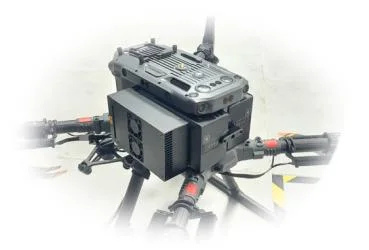

| Air module | Input voltage | 580~810Vdc wide range input | ||
| Output voltage | 51.5Vdc±1%,constant voltage output,support voltage customization | |||
| Output power | ≥3000W(rated long-term output),≥3500W(peak value≮10s) | |||
| Protection function | Input over voltage,under voltage protection,output over voltage,over current,short circuit,and over temperature protection | |||
| Communication function | Optional CAN communication to report voltage, current, temperature data and operating status information. | |||
| Isolation voltage | ≥3000V(Vin-Vout),1min,Current leakage 5mA,no breakdown,flying arc and corona phenomenon | |||
| Installation method | Replacement battery latch, docking battery, side mounting | |||
| Heat dissipation | External fan for active cooling, reserved air ducts for forced air cooling | |||
| Interface | Input XT60,output XT60,output battery interface | |||
| Protection level | IP54 | |||
| Size | 158×92×115±0.5mm,excluding connector | |||
| Weight | 960±10g,excluding outer connector and wire | |||

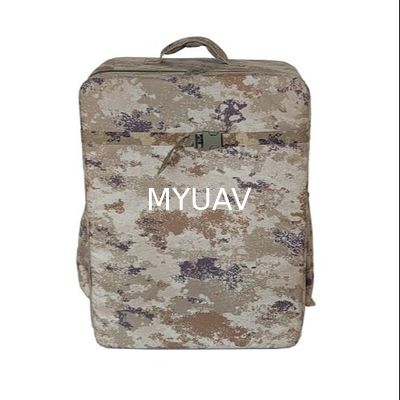

| packages | Size | 550×420×260±5mm(backpack size),600×450×300±5mm(Carton Size) | ||
| Weight | 14.5±1kg,including ground power module,air module,Annexes and documents | |||
1,Unless otherwise specified,All of the above data are in Ta=25ºC,humidity<75%,nominal Input and rated Load.
2,Due to space limitations,there is incomplete data in the sheet.please contact our sales personnel to obtain it.
2,Due to space limitations,there is incomplete data in the sheet.please contact our sales personnel to obtain it.
FAQ
FAQ #1 Question: What is MyUAV's Tethered Drone Station for the M350, and how does it work with the DJI Matrice 350 RTK drone?
Answer: MyUAV's Tethered Drone Station for M350 is a tethered drone station designed for the DJI Matrice 350 RTK Professional class UAV. The tether is capable of continuously powering and transmitting data to the drone via a safety tether, significantly extending flight time and mission performance, especially in situations that require prolonged aerial hovering, high-resolution monitoring, and continuous operations in confined areas such as airports and large event venues. The drone is connected to the ground station through a tether, always maintaining a stable connection of power and signal links, ensuring that there is no need to worry about battery life limitations during flight.
FAQ #2 Question: What are the functional features of MyUAV's M350 tether system?
Answer: MyUAV's Tethered Drone Station for the M350 has the following key features:
Efficient power supply: The system uses high voltage direct current (such as 200V) transmission to ensure that the UAV has an uninterrupted power supply when performing tasks.
Data transmission reliability: Supports high-speed transmission of real-time high-definition video and telemetry data to meet the needs of mission-critical applications.
Safety redundancy design: The system may include multiple safety measures, such as anti-break protection, overload protection, and emergency cutoff devices to ensure the safety of drones and ground equipment.
Customizable: Different cable lengths and interface adaptations are available according to actual application scenarios, ensuring perfect compatibility with DJI Matrice 350 RTK.
FAQ #3 Question: What services and support do I receive if I purchase MyUAV's M350 docking station?
Answer: Customers who purchase MyUAV's Tethered Drone Station for the M350 typically enjoy a range of professional services and support, which may include, but are not limited to:
Detailed installation instructions and operation training ensure that users can use the tethered system correctly and safely.
Full range of technical support, including system integration, maintenance and troubleshooting.
According to the warranty policy of MyUAV Company, you can enjoy a certain period of product warranty service.
For special commercial or industrial applications, customized solutions and technical consulting services may be available.
If there is a companion service, it may also include regular hardware upgrade options, as well as software update support to ensure system performance keeps up with The Times.
