MYUAV Tethered Drone Station Dji Mavic 3 Security Drone Use Tether Power Station
| Place of Origin | China |
|---|---|
| Brand Name | Myuav |
| Model Number | TPS55M-M3 |
| Minimum Order Quantity | 1 epc |
| Price | 4500usd |
| Packaging Details | Carton Case |
| Delivery Time | 14 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Specification | 360 *200 *165 | Trademark | Rosefinch |
|---|---|---|---|
| Production Capacity | 1000/Year | Transport Package | Carton Case |
| Highlight | Power Tethered Drone Station,Dji Mavic 3 Security Drone |
||
Product Description
MYUAV Tethered Drone Station DJI Mavic 3 Security Drone Use Tether Power Station
Typical characteristics
1) . It is small in size and light in weight, with a tethered box weighing only 3.6kg. It is easy to carry with a backpack for storage.
2) . Replace the primary battery, without changing any structure of the UAV, and seamlessly switch between tethering mode or flying mode.
3). The operation is simple, and the entire process of drone takeoff and landing does not require the operation of the ground module. The button type take-up function is also available.
4). The onboard power supply has a constant voltage output, and the backup battery has no charging or discharging phenomenon throughout the entire process, without losing power or causing hidden damage.
Functional characteristics
1). Cable reel in&out function
2). Protection function
3). Fault alarm function
4). Equipment portability
Parameters
| Items | Technical parameters | ||
| Model | TPS33M-M3 | TPS55M-M3 | |
| Cable length | 33M | 55M | |
| Ambient temperature | -20~45 ºC (working), -40~65 ºC (storage) | ||
| Relative humidity | 10-80% RH (working), 5-90% RH (storage) | ||
| Altitude | ≤ 3000m | ||

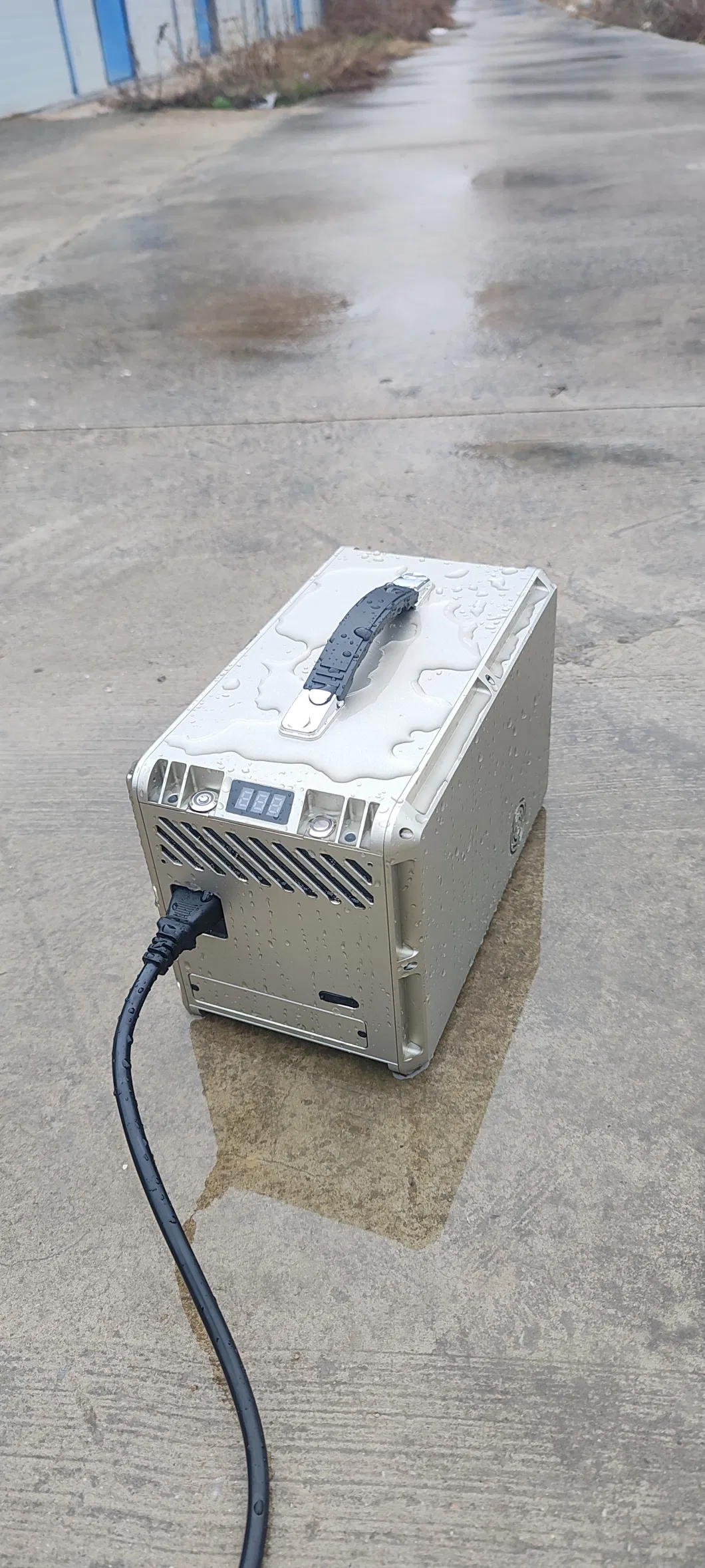

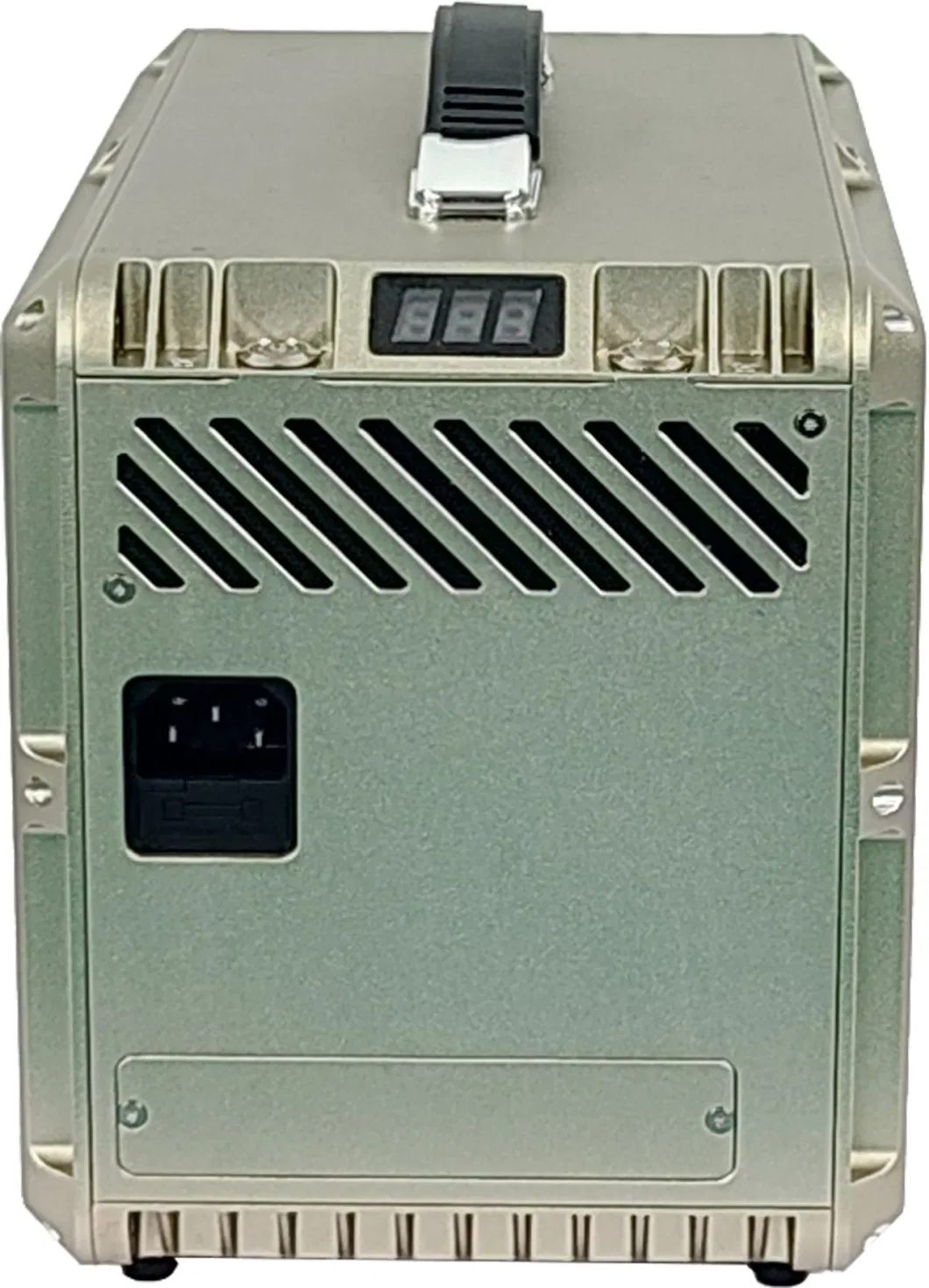

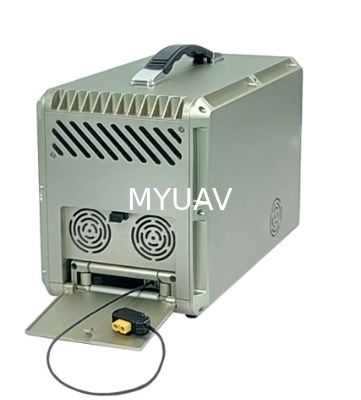

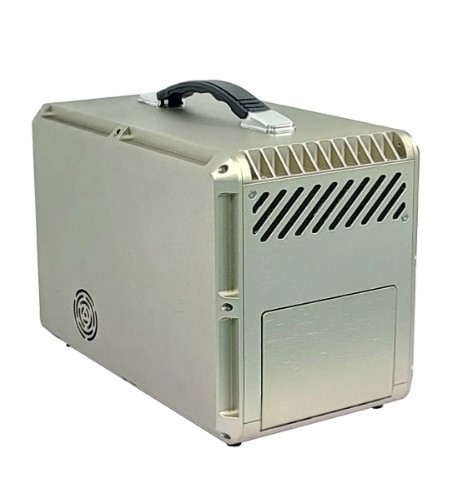

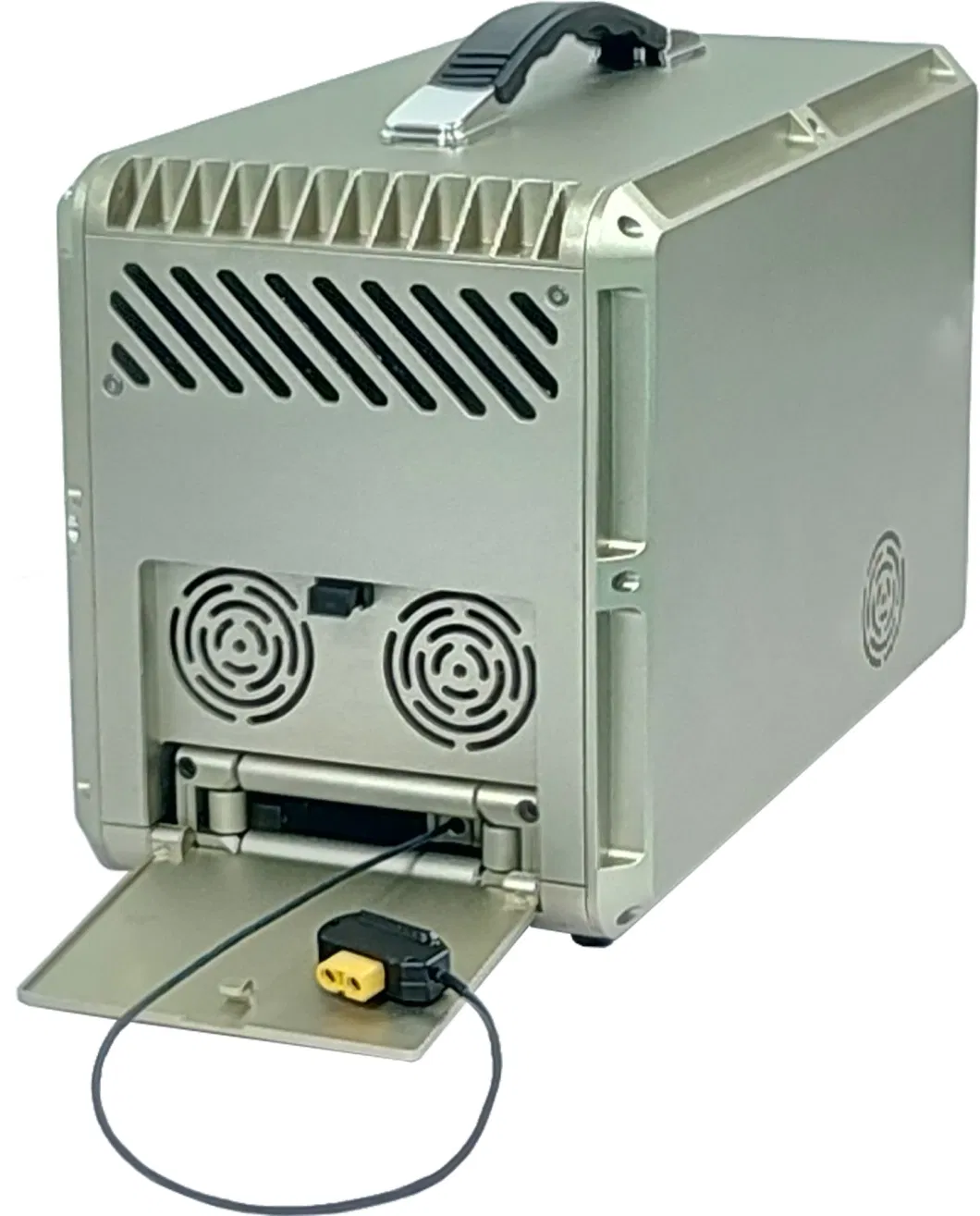

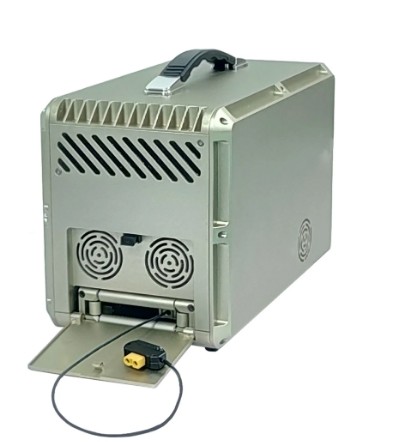

| Ground power module | Input voltage | 176-264Vac wide range input, single-phase 220Vac, frequency 45-65Hz | |
| Output voltage | 300~420Vdc adjustable, factory default 400Vdc | ||
| Output power | 800W (rated long-term output), 1000W (peak value ≥ 30s) | ||
| Storage cable length | Standard cable 33m; 55m is optional; | ||
| Interface | Input socket with switch, cable output XT60 | ||
| Button | High voltage button, take-up button, alarm indicator light | ||
| Protection level | IPx4 | ||
| Size | D265 *W150*H175 ± 0.5mm, excluding foot pads and handles | ||
| Weight | 5.0 ± 0.2kg, including 33m tethered cable | ||
| Tether cable | Material quality | Silver plated lightweight high-temperature resistant aviation wire, composite fluoroplastic insulation layer, high modulus tensile aviation grade fiber woven layer | |
| Carrying capacity | 1.5-2A | ||
| DC resistance | 26 ± 0.2 Ω, 100m@20 ºC loop | ||
| Tensile strength | ≥ 50kg, resistant to repeated reel in&out ≥ 500 times | ||
| Insulation strength | ≥ 3000Vdc, no breakdown for 1 minute | ||
| Cable length | Standard 33 ± 2m; 55m is optional; | ||
| External diameter | 2.2 ± 0.1mm | 2.0 ± 0.1mm | |
| Weight | 6.5g/meter | 4.6g/meter | |

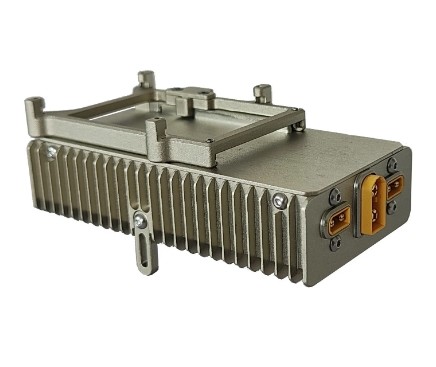

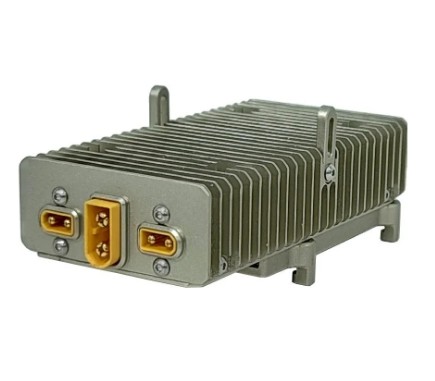

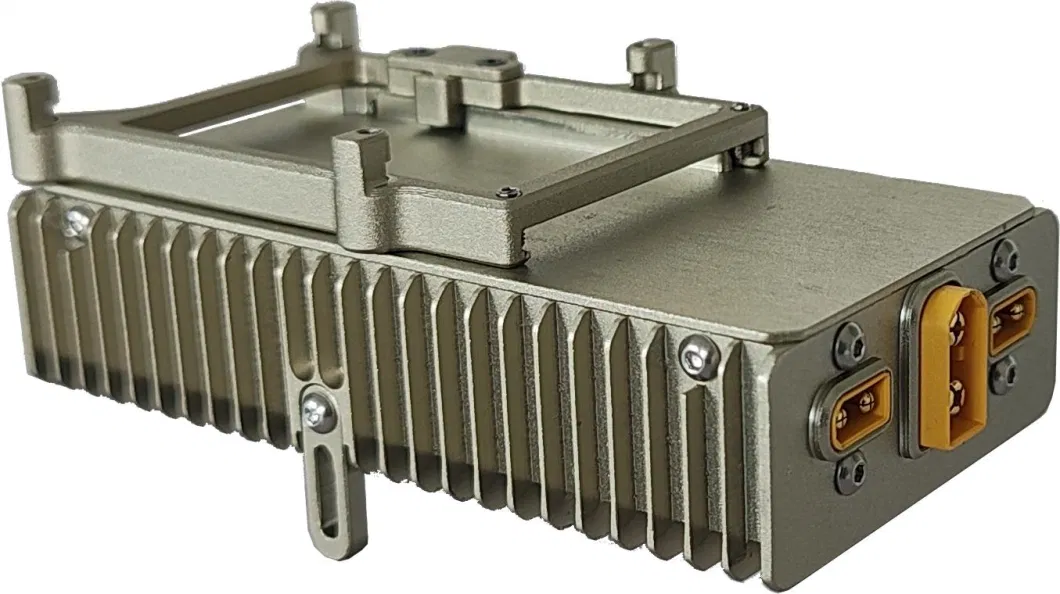

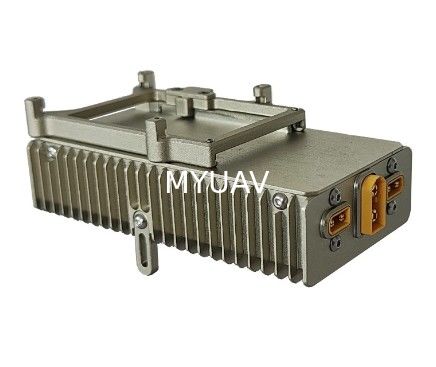

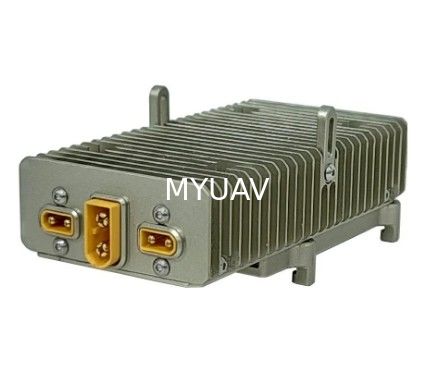

| Air module | Input voltage | 330-430Vdc wide range input | |
| Output voltage | 17.2 ± 0.2Vdc, constant voltage output, supporting voltage customization | ||
| Output power | 600W (rated long-term output), 800W (peak value ≥ 10s) | ||
| Protection Function | Input overvoltage and undervoltage protection, output overvoltage, overcurrent, short circuit, and over temperature protection | ||
| Heat dissipation method | Passive heat dissipation, natural air cooling of heat dissipation teeth | ||
| Interface | Input XT60, output XT30*2 | ||
| Size | 105*56*25 ± 0.5mm, without mounting bracket | ||
| Weight | 210 ± 10g, without external connectors | ||
Applications
ø Emergency Monitoring ø Large Event Scheduling ø Airport Communication Command
ø Forest Fire Prevention ø Disaster Site Rescue ø Fire Extinguishing for Bulidings
ø Long Term Filming ø Live TV Aerial Photography ø High Altitude Relay Communication
ø Individual Area Patrol ø Vehicle Mounted Optoeletronic Reconnaissance
ø Sea Patrol Monitoring
