MYUAV Drone Uav Accessories TPS330m-FC30 Tethered Power System
| Place of Origin | China |
|---|---|
| Brand Name | Myuav |
| Model Number | TPS330M-FC30 |
| Minimum Order Quantity | 1 epc |
| Price | 14800usd |
| Packaging Details | Carton Case |
| Delivery Time | 14 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Air Module Output Voltage | 51.5V | Air Module Protection Level | IP54 |
|---|---|---|---|
| Specification | 550*420*260mm | Trademark | Rosefinch |
| Air Module Iutput Voltage | 580~810V | Air Module Output Power | Greater Than Or Equal To 3000W |
| Highlight | Drone Uav Accessories Tethered Power System,TPS330m-FC30 Tethered Power System,MYUAV Drone Uav Accessories |
||
Product Description
Drone UAV Accessories TPS330M-FC30 Tethered Power System
I,Typical Characteristic
1.Simple operations,the entire process of drone taking off and landing does not require the operation of ground module.
2.Comprehensive input /output protection,fault elimination and self recover.
3.Fully automatic take up and pay off function,the wire can be rewound under power loss.
4.The air module power supply has a constant voltage output,and the back up battery has no charging and discharging phenomenon.
5.The air module power supply replaces a single drone battery without any structural changes to the drone.
1.Simple operations,the entire process of drone taking off and landing does not require the operation of ground module.
2.Comprehensive input /output protection,fault elimination and self recover.
3.Fully automatic take up and pay off function,the wire can be rewound under power loss.
4.The air module power supply has a constant voltage output,and the back up battery has no charging and discharging phenomenon.
5.The air module power supply replaces a single drone battery without any structural changes to the drone.
II,Adapted FC30 drone
1.Supporting flight duration:≥24h.
2.Supporting flight altitude:≥200/300m(tethered cable length220/330m,Reserve safe length)
III,Function characteristics
1.Protection functions:Separate design for strong and weak electricity.input over voltage and under voltage protection,output over voltage ,output over current,output circuit,output over temperature protection,input and output voltage resistance≥3000VDC,tethered cable insulation voltage resistance≥3500VDC.
2.Data communication:wired and wireless communication function,Support remote display and control,client-side data viewing and downloading.Optional fiber optic communication.
3.Data display function:The touch screen displays data such as output voltage,output current,output power, cable outlet length,working duration,installation temperature,total power consumption,fault record,and working status information.
4.Set and adjustment:the display screen supports setting and adjustment the parameters such as take-up and payoff tensile and speed,data and time,output voltage,safety lengths,warning temperature,ect...,and support the switching between Chinese and English.
5.Alerts and reminds:Failure the screen displays the contents of the fault,the buzzer strong sound reminder.
6.Automatic take-up and payoff:following take off and landing of the drone to synchronously tethered cable take-up and payoff,adjusting the tension auto management,and manually press the button to reaction the cable while power cut off.
7.Carry and transport:The box is equipped with a handle and foot pads, optional folding trailer, trolley wheels for transportation. Power supply is optional 25000W/100L diesel generators (specifications attached)
IV,Parameters
| items | Technical parameters | ||
| Model | TPS220M-FC30 | TPS330M-FC30 | |
| Cable length | 220M | 330M | |
| Environmental temperature | -20~45ºC(working),-40~65ºC(storage) | ||
| Relative humidity | 10~80%RH(working),5~90%RH(storage) | ||
| Altitude | ≤3000m | ||

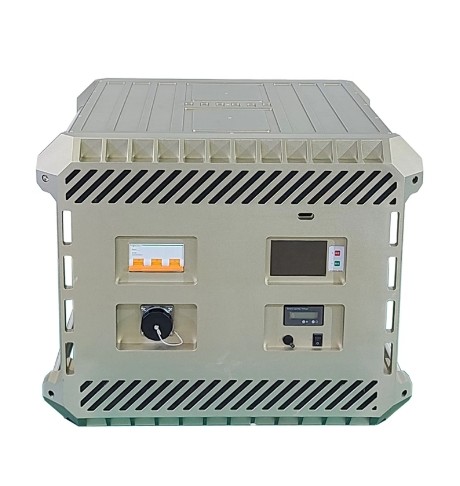

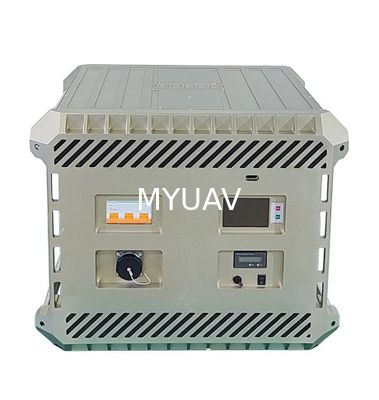

| Ground power module | Input voltage | 380±10%VAC,three-phase, five-wire system (TCM),frequency 50Hz | |
| Output voltage | 600~800Vdcadjustable,Factory Default 800Vdc | ||
| Output power | ≥22000W(Rated Long-Time Output),≥25000W(peak value≮30s) | ||
| take-up and payoff speed | 0~3m/s,adjustable | ||
| take-up and payoff tensile | 0~20N,adjustable | ||
| interface | Input air plug, bollard output LP20 air plug, fiber optic FC port (optional) | ||
| Button and switch | AC Switches, high voltage on/off buttons, cable take-up buttons, power backup switches | ||
| Protection level | IPx4 | ||
| Size | 600×570×460±0.5mm,excluding foot pads and external accessories | ||
| Weight | 54±0.5kg,excluding tethered cable | ||
| Tethered cable | Material | Alloy lightweight high temperature resistant aircraft wire, composite fluoroplastic insulation, high modulus tensile aerospace grade fiber braid | |
| Fiber optic communication | The tethered cable is an optoelectronic composite cable containing tightly wrapped single-mode fiber with optional fiber optic communication. | ||
| Current | 25~30A | ||
| DC resistance | 1.6±0.1Ω,100m@20ºCloop | ||
| Resistance Tensile strength | ≥300kg,resistant to repeated reaction and release times≥1000 | ||
| Insulation strength | ≥3500Vdc,1min no breakdown | ||
| Cable length | standard equipment 220m,optional 330m | ||
| Outer diameter | 6.3±0.1mm | ||
| Weight | 44±1g/m | ||

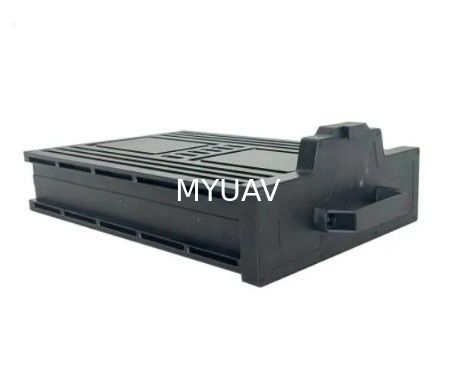

| Air module | Input voltage | 580~810Vdc wide range input | |
| Output voltage | 59Vdc±1%,constant voltage output,support voltage customization | ||
| Output power | ≥18000W(rated long-term output),≥22000W(peak value≮10s) | ||
| Protection function | Input over voltage,under voltage protection,output over voltage,over current,short circuit,and over temperature protection | ||
| Communication function | Optional CAN communication to report voltage, current, temperature data and operating status information. | ||
| Isolation voltage | ≥3000V(Vin-Vout),1min,Current leakage 5mA,no breakdown,flying arc and corona phenomena | ||
| Installation method | Replacement of one drone battery, direct plug-and-play installation | ||
| Heat dissipation | Built-in fan for active cooling, reserved air ducts for forced air cooling | ||
| Interface | Input LP20 air plug,output XT90,XT60×2 | ||
| Protection level | IP54 | ||
| Size | 468×308×142±0.5mm,excluding connector | ||
| Weight | 10.8±0.2kg(Replacement of one 11.5kg drone battery) | ||
| Packages | Size | wheeled suitcase:850×740×600±5mm(Wheels not included) | |
| Weight | 115±5kg,Storage of ground power module, air module, trailer (optional), Annexes and documents | ||
1,Unless otherwise specified,All of the above data are in Ta=25ºC,humidity<75%,nominal Input and rated Load.
2,Due to space limitations,there is incomplete data in the sheet.please contact our sales personnel to obtain it.
