MYUAV New Tethered Power Module for the DJI M3 Drone

Full Description
Tethered Drone Systems
Increased endurance, secure data, and safer flights.

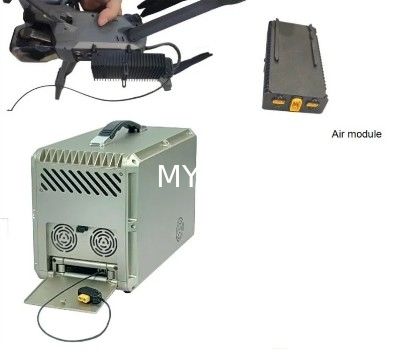

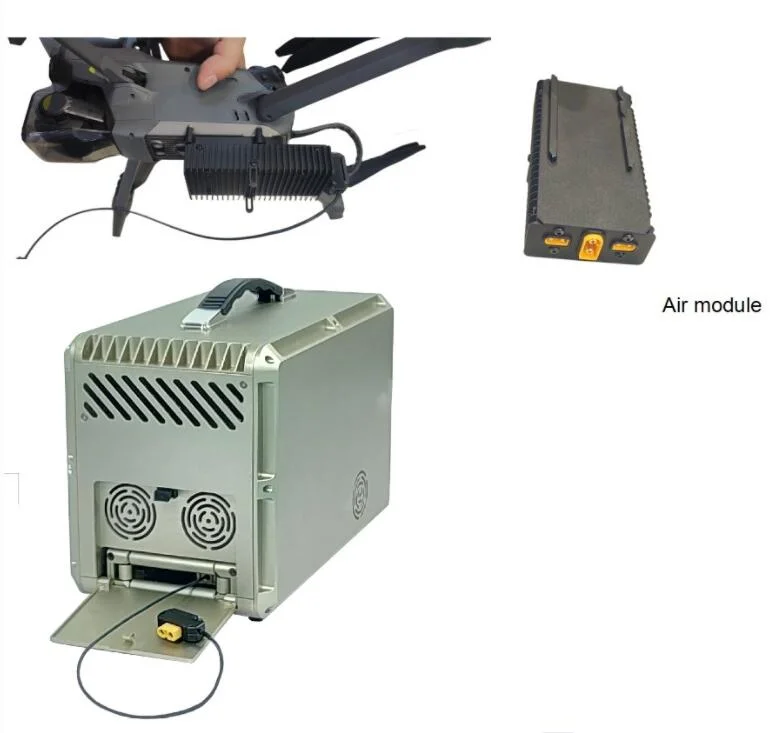

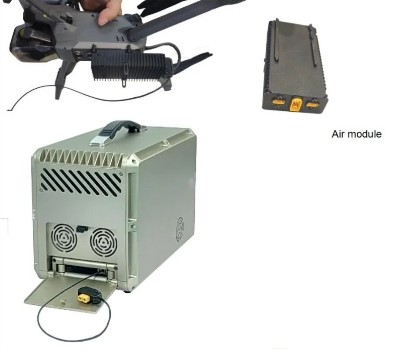

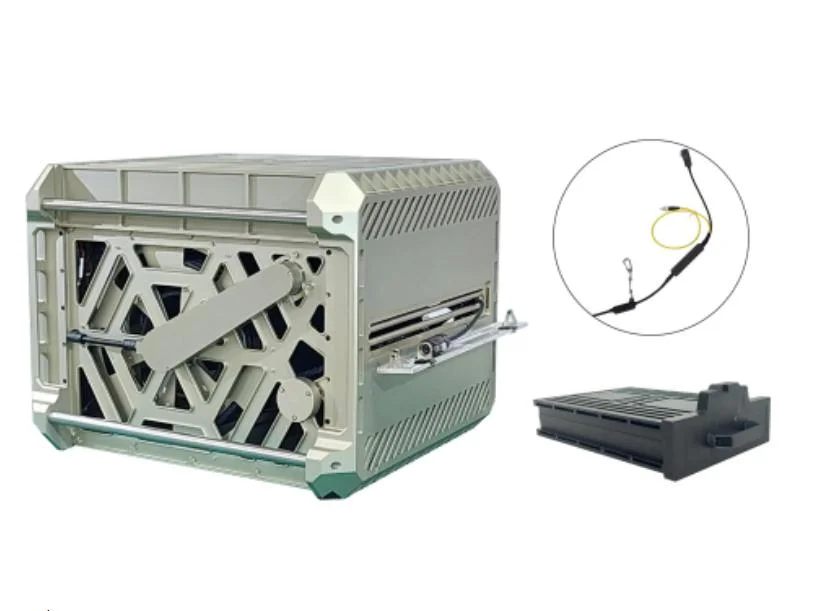

The drone tethered system for DJI drone series, DJI Mavic 3 and Mavic 3 enterprise drone,DJI M30 drone,DJI M300 DJI Matrice 300 RTK,DJI Flycart30,the DJI tether system included 2 parts, the ground power station which built-in winch, and the onboard power module,it is used for long-term aerial surveillance, max power supply time up to 12 hours,24hours.

The high-quality aluminum tethered power station, and the onboard power module, the tension-resistant, high-strength tethered cable, the automatic take-up & release cable winch system,especially the drone tethered system for DJI Mavic 3 and Mavic 3 enterprise drone is lightweight and portable and has strong protection.

Specifications

DJI Mavic 3 Tethered Power System



KEY FEATURES

Support flight altitude:	33m or 55m
Input voltage of Ground power module	176-264Vac
Output voltage of Ground power module	300~420Vdc adjustable
Size and weight of Ground power module	D265 *W150*H175mm, 5KG.
Output voltage of Air module	17.2 ± 0.2Vdc
Output power of Air module	600W
Size and weight of Air module	D105*W56*H25mm,210G.

Environmental characteristics
1) Environmental temperature: -20~45 ºC (working), -40~65 ºC (storage).
2) Relative humidity: 10-80% RH (working), 5-90% RH (storage).
3) Altitude: 0-3000m.

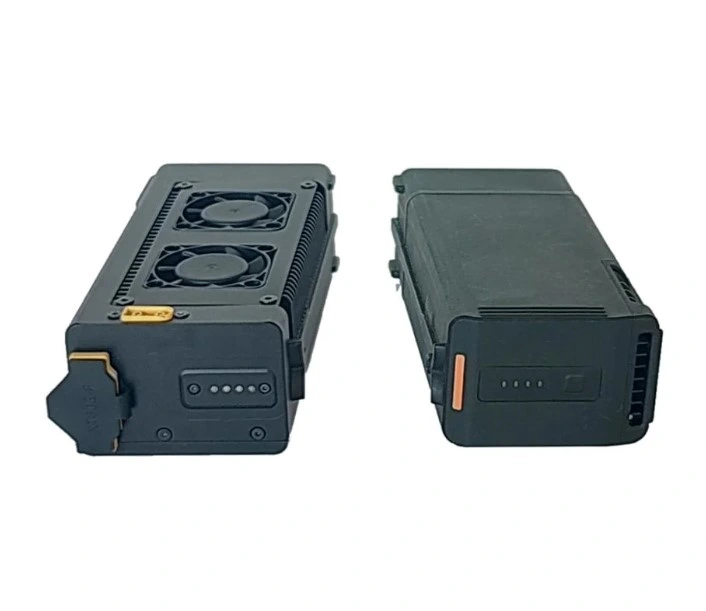

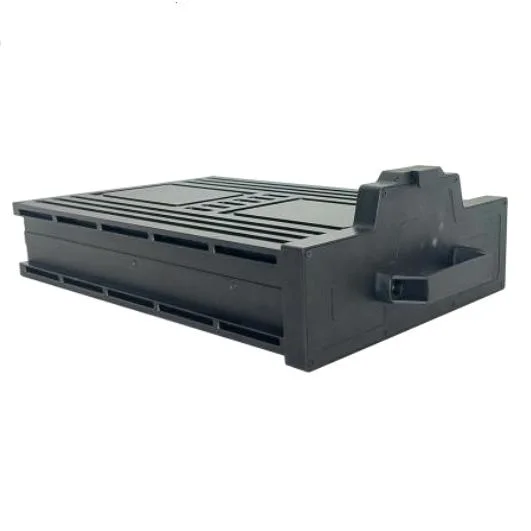

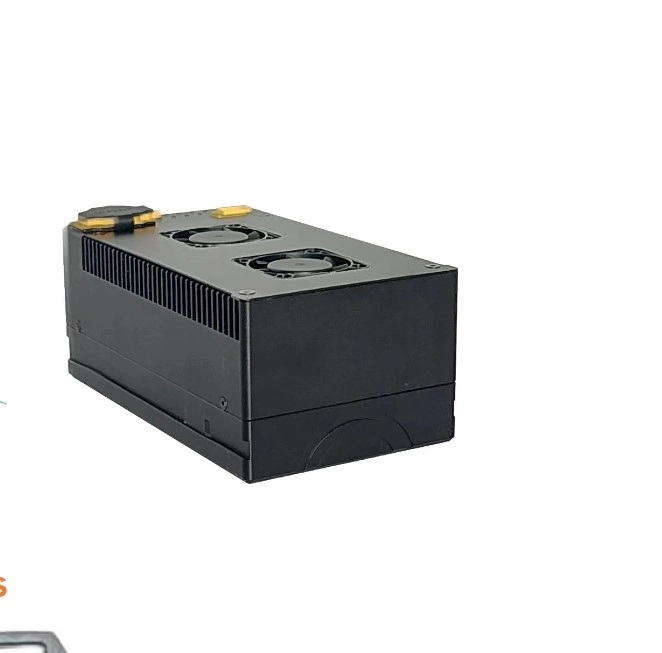

Air module power supply
1) Input voltage: 330-430Vdc wide range input.
2) Output voltage: 17.2 ± 0.2Vdc, constant voltage output.
3) Output power: 600W (rated long-term output), 800W (peak value≤10s).
4) Protection function: Input overvoltage and undervoltage protection, output overvoltage, overcurrent, short circuit, and over temperature protection.
5) Installation method: Tool free snap on installation.
6) Heat dissipation method: Passive heat dissipation, natural air cooling of the heat dissipation teeth.
7) Interface: Input locking aviation socket, output XT30.
8) Size: 115 × 59 × 35 ± 0.5mm, excluding mounting brackets.
9) Weight: 300 ± 10g, excluding external connectors.
10) Protection level: IP54.

Tether cable
1) Material: Silver plated lightweight high-temperature resistant aviation wire, composite fluoroplastic insulation layer, high modulus tensile aviation grade fiber woven layer.
2) Current: 1.5-2A.
3) DC resistance: 26 ± 0.2 Ω, 100m loop @ 20 ºC,
4) Tensile strength: ≥ 50kg, resistant to repeated retraction and release times ≥ 500 times.
5) Isolation voltage: ≥ 3000Vdc, no breakdown after 1 minute.
6) Cable length: 33 ± 2m, supporting customized cable length.
7) Outer diameter: 2.2 ± 0.1mm.
8) Weight: 0.65 ± 0.05kg/100m.

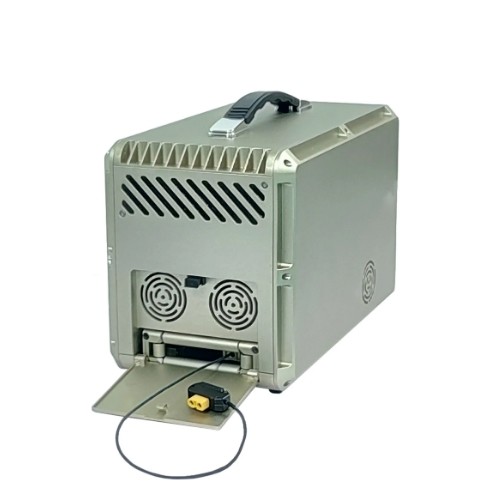

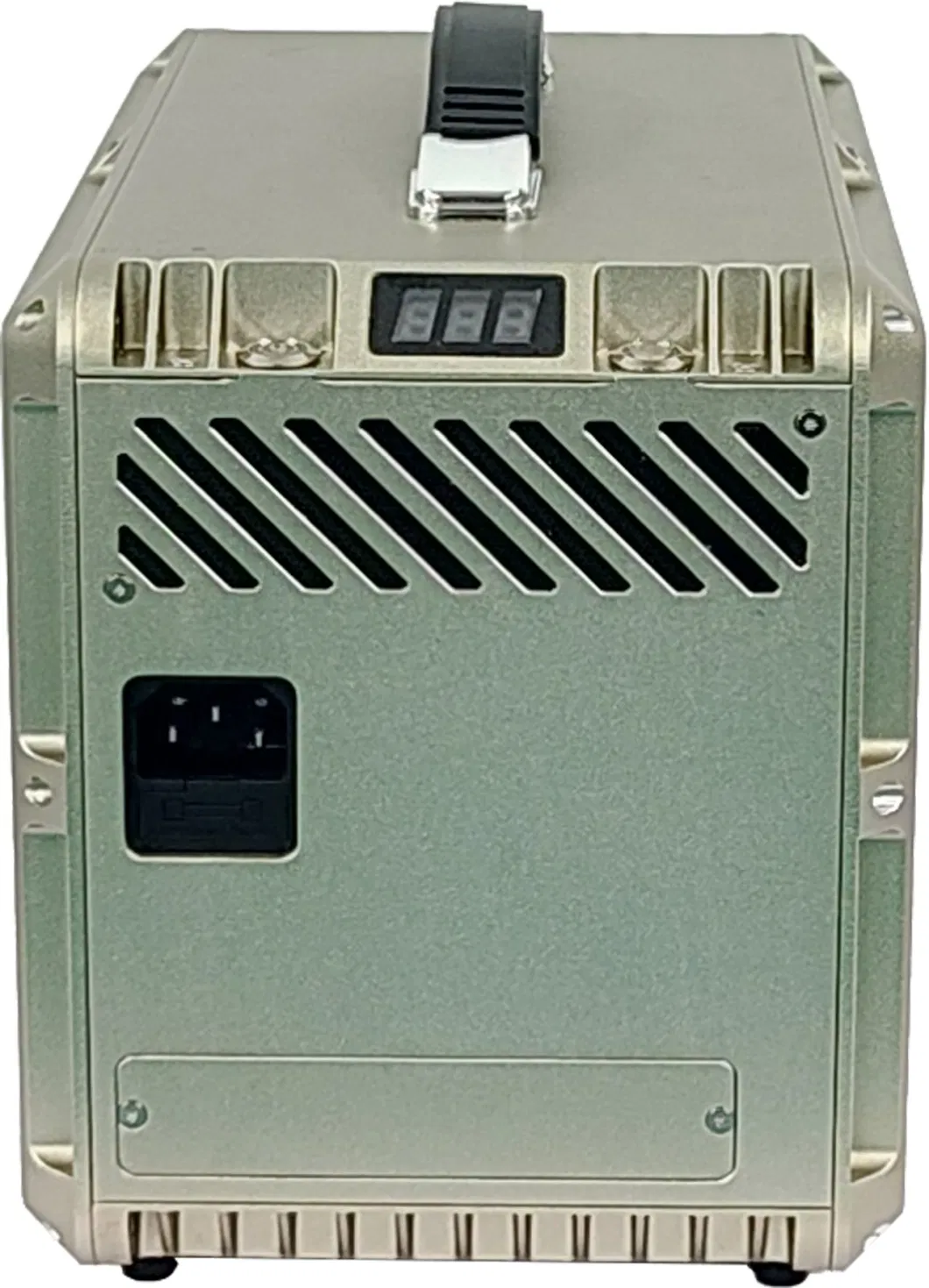

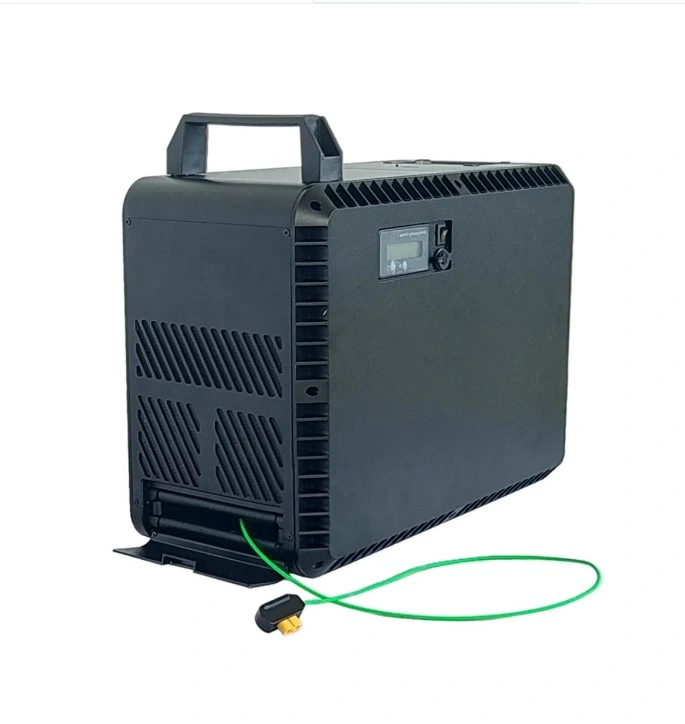

Tether ground box
1) Input voltage: 176-264Vac wide range input, single-phase 220Vac @ 45-65Hz.
2) Output voltage: 300~420Vdc adjustable, factory default 400Vdc.
3) Output power: 800W (rated long-term output), 1000W (peak value≤30s).
4) Storage cable length: Standard storage cable 33m, supporting maximum storage cable ≥ 55m.
5) Cable reel in and out function function: Passive cable reel out, long press the button to automatically reel in, and manually winding in case of power loss.
6) Protection function: Input overvoltage and undervoltage protection, output overvoltage, overcurrent, short circuit, and over temperature protection.
7) Fault alarm function: The fault alarm light flashes red and beeps for alarm prompt.
8) Interface: Input socket with switch, cable output locking aviation socket.
9) Buttons: High-voltage on/off button, cable reel in forced button, alarm lamp
10) Size: 280 × 150 × 185 ± 0.5mm, excluding foot pads and handles.
11) Weight: 4.2 ± 0.1kg, including 33m tether cable.
12) Protection level: IPx4.
13) System equipment carrying: backpack design, the backpack can be equipped with a complete set of tethering system including a tether ground box, air module power supply, lighting unit, and other accessories, with an overall weight of 5.0 ± 0.2kg.

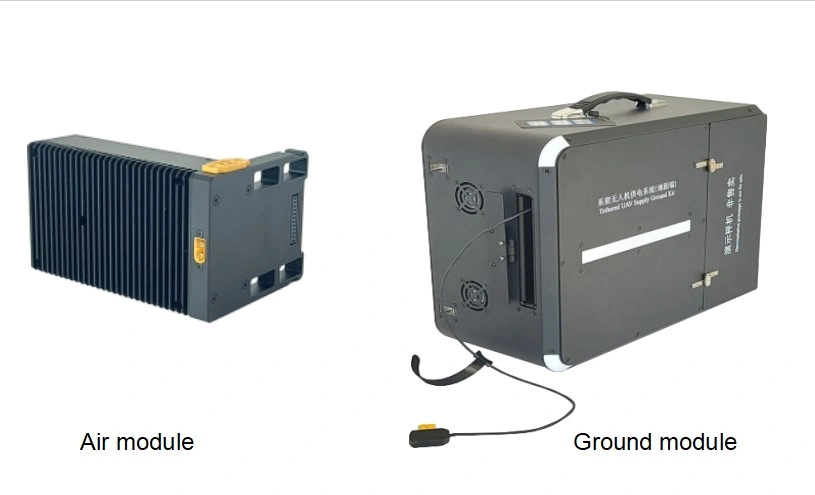

DJI M30 Tethering Drone System

KEY FEATURES

Support flight altitude:	55m or 110m
Input voltage of Ground power module	176-264Vac
Output voltage of Ground power module	600~810Vdc adjustable
Size and weight of Ground power module	360 ×180 ×260mm, 9KG.
Output voltage of Air module	25.5 ± 0.2Vdc
Output power of Air module	2000W
Size and weight of Air module	156 ×75 ×48mm,570G.

DJI M300/M350 Drone Tether Station

KEY FEATURES

Support flight altitude:	55m,110m or 160m
Input voltage of Ground power module	176-264Vac
Output voltage of Ground power module	600~830Vdc adjustable
Size and weight of Ground power module	360 × 280 × 165mm, 9.2KG.
Output voltage of Air module	51.5 ± 0.2Vdc
Output power of Air module	3000W
Size and weight of Air module	158 × 92 × 110mm,960G.



DJI Flycart30 Tether power system

KEY FEATURES

Support flight altitude:	110m or 2200m
Input voltage of Ground power module	176-264Vac
Output voltage of Ground power module	600~800Vdc adjustable
Size and weight of Ground power module	600×570×460, 54KG.
Output voltage of Air module	59± 0.2Vdc
Output power of Air module	19200W
Size and weight of Air module	468 × 308 × 142mm,9.8KG.



-Day and night missions
-Radio relay
-Crisis management
-Site protection
-Traffic surveillance
-Large-scale events security
-Forest surveillance
-Industry monitoring
-Air-quality monitoring

1. More rotor unmanned aerial vehicle (UAV) is of certain danger and destruction, improper operation may cause personal injury or property damage, please use the product in strict accordance with the operating manual
2. The operator should receive professional training and examination, untrained personnel do not handle this product
3. Don't be drunk, poor state of fatigue, sick when handling this product
4. Must keep personnel with safe distance between unmanned aerial vehicle (UAV), constantly to prevent the possibility of danger
5. Please fly under the safe take-off weight, in case of any risks.
6. Please not fly under strong electromagnetism interference circumstance
7. Please follow the local laws and regulations and not fly in no-fly zone
8. Please not keep close or touch the rotating motor or propeller, in case cut by the rotating propellers.
9. Please charge the two batteries full before install them to the uav, and make sure their differential pressure less than 0.1 V
10. The battery long time no use, please store it in ventilated dry place with 60% electricity

1. Mapping, surveying and 3D modeling
2. Surveillance
3. Inspection
4. Delivery
5. Customization according to application and client's requirements

Q1: Do you support OEM/ODM?
A1: Yes. We can print your logo on the product.
Q2: About samples.
A2: Under normal circumstances, samples will be ready within 7 days, and 10-20 days for OEM/ODM orders. Sample fee and shipping will be charged.
Q3: What is the delivery time?
A3: For regular orders, we can ship within 15 days, for OEM/ODM, we can ship within 25-45 days (depending on the quantity). In the event of delays, we will notify you in advance of the status and resolution.
Q4: What is the minimum order quantity?
A4: There is no MOQ for wholesale (1 piece accepted), including OEM/ODM.
Q5: Can you reduce the shipping cost?
A6: When calculating the shipping cost for you, we always choose the cheapest and safest express. Although we have partnerships with shipping companies, we can't keep costs down because it's not us who get paid. If you think it's expensive for you. You can always make your own choice.
