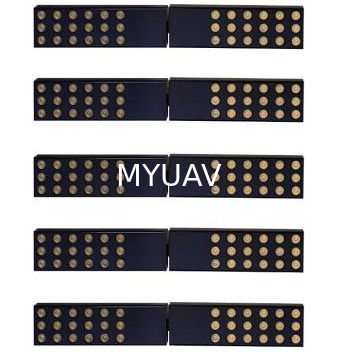

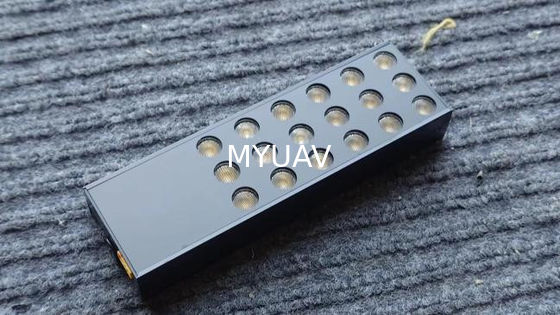

Tethered Drone Light For FC30/ FC30M By MYUAV Light Weight High Lumen High Power
| Place of Origin | CHINA |
|---|---|
| Brand Name | MYUAV |
| Model Number | FC30M |
| Minimum Order Quantity | 1 unit |
| Price | 8000usd |
| Packaging Details | carton packaging |
| Delivery Time | 2-3weeks |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 200unit |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 150 Mm × 47mm × 35mm (single) | Total Weight | 160g /single 3600g /20 Set |
|---|---|---|---|
| Material | Aviation Aluminum Alloy | Power | Max.180W /(single) Max.3600W/set |
| Single Luminous Flux | 20,000 Lm (calculated)/single 400,000 Lumens/complete Set | Illumination Range | >40,000 Sq. Meters/set |
| Input Power | 20 - 60 V Wide Voltage Input | Electric Current | 2.5 - 7 A/single |
| Automatic Temperature Protection | 60 ℃(Above This Wendy, Power Decreases As Temperature Rises) | ||
| Highlight | High Power Tethered Drone Light,FC30M Tethered Drone Light,High Lumen Tethered Drone Light |
||
Product Description
Tethered drone light for FC30
Functions
This tethered UAV lighting set is specially designed for DJI FC30 UAV to be used as a UAV lighting mount for nighttime construction and rescue operations. The product is powered by the FC30M tethered device, with a continuous lighting time of up to 12 hours, providing lighting convenience for night operations.
Features
1. Easy to install, plug and play. 2;
2. Always on, automatic temperature control detection;
3. light weight, high lumen, high power;
Product Specification
| Size | 150 mm × 47mm × 35mm (single) |
| Total Weight |
160g /single 3600g /20 set |
| Material | Aviation Aluminum Alloy |
| Power |
max.180W /(single) max.3600W/set |
| Single Luminous Flux |
20,000 lm (calculated)/single 400,000 lumens/complete set |
| Illumination Range | >40,000 sq. meters/set |
| Input Power | 20 - 60 V wide voltage input |
| Electric Current | 2.5 - 7 A/single |
| Automatic Temperature Protection | 60 ℃(Above this wendy, power decreases as temperature rises) |
| Short-circuit Shutdown Protection | outfit |
| Tethered Power Failure Protection | outfit |
| Power Plug | ICX301 standard, with other adapter plugs available |
| Control Method | 3 types: power on instantly / drone remote control PWM / independent remote control on (optional) |
| Brightness Control | Supports stepless dimming: Brightness adjustment range 0~100 |
| LED Light Bulb | CREE |
| Lacing Arm Diameter | 25- 40mm adjustable |
FAQ
Q1: What are the main applications of FC30 Lighting Mounted Device?
A1: FC30 Lighting Mounted Device is mainly used in night time or low light conditions, such as construction, emergency rescue, large-scale activities, etc. It can provide a continuous and stable light source to ensure the smooth progress of the work on site.
Q2: What is the maximum irradiation range of FC30 Lighting Mounted Device?
A2: FC30 Lighting Mounted Device is designed to provide large area lighting support, the specific irradiation range depends on the selected lamp model and configuration, usually can cover a radius of 100 meters or more, to meet the needs of most outdoor work.
Q3: How is the FC30 Lighting Mounted Device mounted on the UAV?
A3: The FC30 Lighting Mounted Device is modular in design, and is connected to the UAV body through a dedicated quick release interface. Users can easily install or remove the device according to their actual needs without the need for professional tools.
Q4: Does the FC30 Lighting Mounted Device support remote control of brightness adjustment?
A4: Yes, the FC30 Lighting Mounted Device supports remote brightness adjustment via remote control or the accompanying application program, which allows the operator to adjust the light intensity according to the actual situation on site to achieve the best lighting effect.
Q5: What is the protection level of FC30 Lighting Mounted Device and can it adapt to severe weather conditions?
A5: The FC30 Lighting Mounted Unit has a high protection rating of at least IP43, meaning that it is effectively protected against the ingress of solid foreign objects larger than 1.0mm in diameter and resistant to water splashes from any direction. This enables the FC30 to operate stably in complex environments such as dusty, wet and even light rain.
