Medium Tethered UAV System for Aerial Surveillance
| Place of Origin | CHINA |
|---|---|
| Brand Name | MYUAV |
| Model Number | M10 |
| Minimum Order Quantity | 1 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | Medium Tethered UAV System,Aerial Surveillance Medium Tethered UAV System |
||
|---|---|---|---|
Product Description
Medium Tethered UAV System
System Model:M10
1. System Configuration
- 14S UAV
- 10kw 14S Airborne Power Supply
- 380VAC, 300m Tethered UAS Base Station
2. Constituent parameters

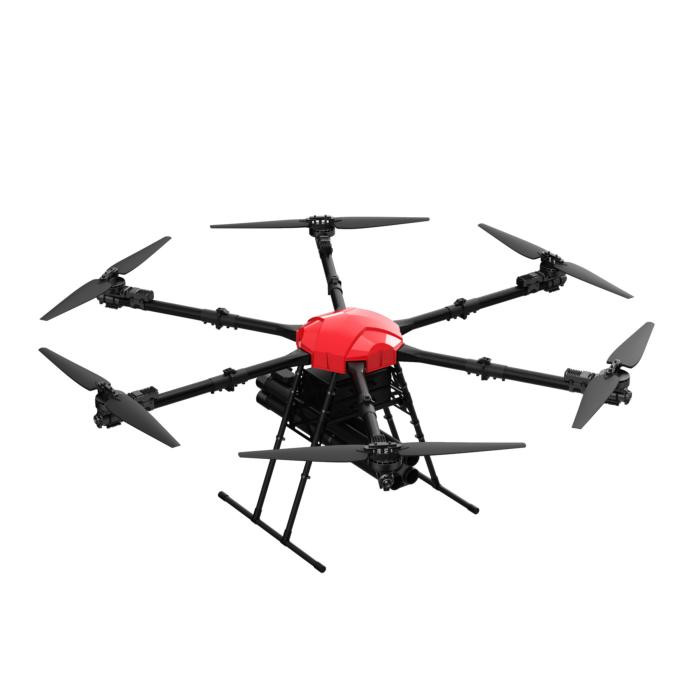

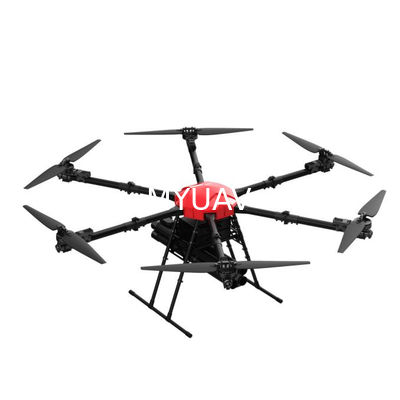

- UAV
Model MH30
Material Carbon Fibre + Aerospace Aluminium Alloy
Number of rotors 6 rotors
Wheelbase ≤1920
Expanded size (mm) 1780*2070*800
Folding size (mm) 1000*1250*800
Empty weight ≤18.5KG(without battery)
Maximum load ≤30KG
Maximum take-off weight ≤58KG
Maximum flight speed ≤18m/s
Maximum ascending speed ≤5m/s
Maximum descent speed ≤4m/s
Maximum take-off altitude 4000m
Empty endurance ≥35min
30kg endurance ≥10min
Positioning system GPS positioning + RTK
Power system High efficiency FOC power
Propeller size 34 inch folding propeller
Power Battery 14S 28000mAh*1
Charger Intelligent super fast charger
Remote control 11 inch screen
Standby time of remote control 8-12 hours
Transmission distance 5km-10km (upgradeable)
Safety wind speed ≤6
Working Temperature -20℃ to 50
Body protection grade IP65
- Air Power Supply
| Onboard Power Supply | Parameter |
| External Dimensions (with heat sink) | 25.2 x 14.4 x 5.9cm |
| Weight | 2100g |
| Rated Power | 10kw |
| Rated Input Voltage | 1000VDC |
| Rated Output Voltage | 58VDC / 14S |
| Duration of flight | 24 hours (rated load, tethered power mode) |
| Conversion efficiency | 94% |
| Overcurrent protection | Output current greater than 175A, automatic protection of on-board power supply |
| Over-voltage protection | Yes |
| Output short circuit protection | Yes, Recoverable |
| Over-temperature protection | 120℃ |
| Power failure protection | In tethered mode, the aircraft can fly and land normally if the power supply is interrupted during flight |
Vo+ / Vo-(BAT+ / BAT-): QS8 connector female *2 sockets DC output port for connection to drone inputs Connect either socket to the drone's onboard battery for backup power supply. Vin+ / Vin-: Male XT90 connector High-voltage DC input for cables connected to ground tethered base station |
|
|
|
- Tethered Base Station
| Dimension | 68.6x44.8x49.2cm |
| Display | 7’HD display |
| Power supply |
AC380V power supply 1000V DC output Continuous working time not less than 24h; 20kw max power |
| Tether height | Maximum 300 metres |
| Advantages |
|
| Weight | 50kgs tethered base station |
