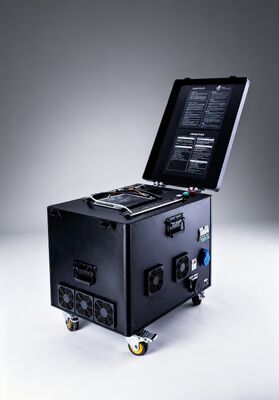

DJI Fly Cart100mini Ground Tethered Base Station
Place of Origin:
China
Brand Name:
MYUAV
Certification:
ISO9001, ISO14001, ISO45001
Model Number:
Fly Cart 100 mini Ground Tethered Base Station
Minimum Order Quantity:
1
Price:
USD
Delivery Time:
3 weeks
Payment Terms:
T/T
Inquiry Now
Get A Quote
Specifications
Highlight Features
DJI Fly Cart100mini tethered drone
,ground base station for drones
,tethered drone system with warranty
Size:
64x45x55cm
Weight:
55kg
Input Voltage:
AC 380±10%，
Output Voltage:
Rated DC1000V
Name:
Tethered Drone Station
Product Description
Ground Tethered Base Station Performance Specification:
| Input Voltage |
AC 380±10%,Three-phase power supply, compatible with
mains power, generators and other equipment power supply
|
| Output Voltage |
Rated DC1000V
|
| Output power |
Max.40kW
|
| Reel in Speed |
0～2m/s adjustable
|
| Dimension |
Length×width×Height:External dimensions 64x45x55cm
|
| weight |
55kg(Excluding tethering cable)
|
| Material |
Aerospace-grade aluminum alloy
|
| Protection |
Features a strong and weak electrical separation design, with protections for
input under-voltage, input over-voltage, output over-voltage, output
over-current, output short circuit, output over-temperature, and Bluetooth
control functionality
|
