FlyCart 30 350m High Tethered Drone System By MYUAV FC30M

_{FlyCart 30 350m high}

_{Tethered Drone System}

1. Brief introduction

• _{FC30 UAV long endurance hovering}

_{Ground station continuously provides drone-power electricity for 8 hours of hovering which enables clean / spray work can last long}

• _{Multiple ways to supply power}

_{25kw max. 380V industrial power supply, generator power supply.}

• _{High security}

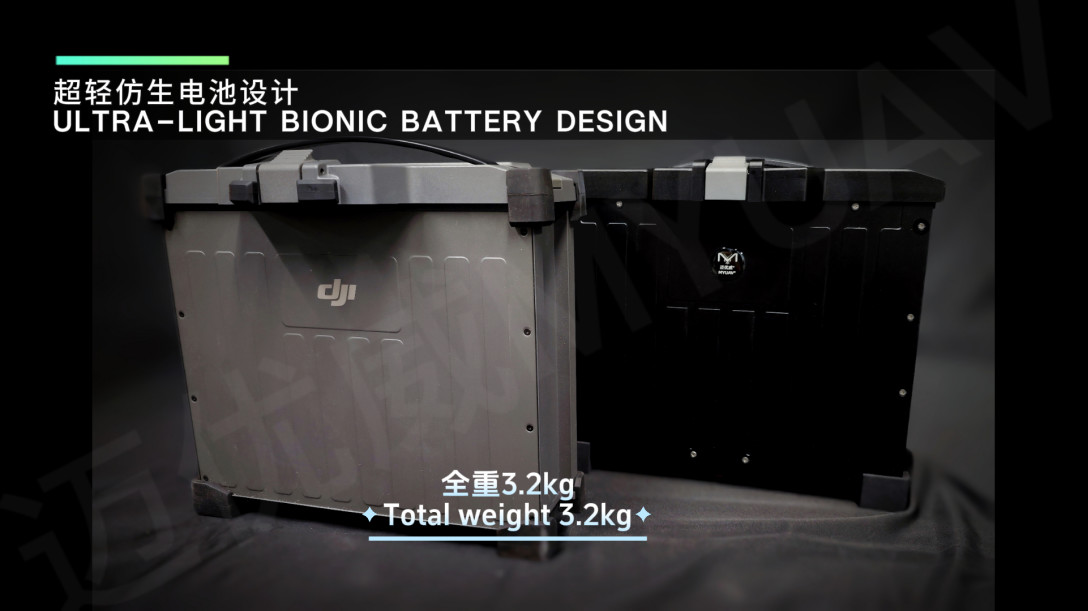

_{Installation replacing one of the original battery packs. If emergency, the backup battery pack can immediately take over the power supply.}

2. System composition

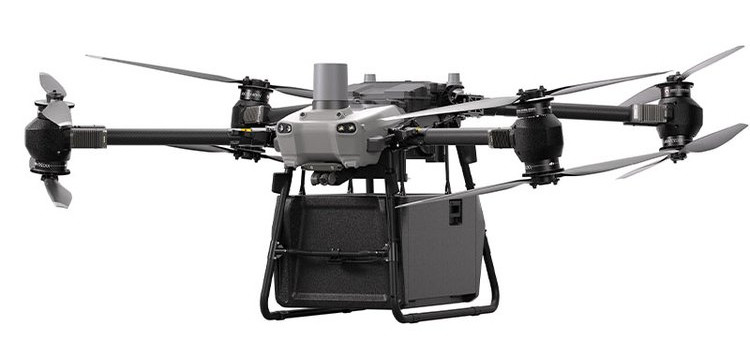

• ^{FlyCart 30 drone}
• ^{Payload system}
• ^{FC30M Onboard Power Supply together with 350m Tethered Base Station}
• ^{380V min.25kw power by customers}

3. Detailed parameters

• ^{FC30 Drone}

^{FC30 drone, parameters and configurations are detailed on the DJI website}

• _{Tethered system}

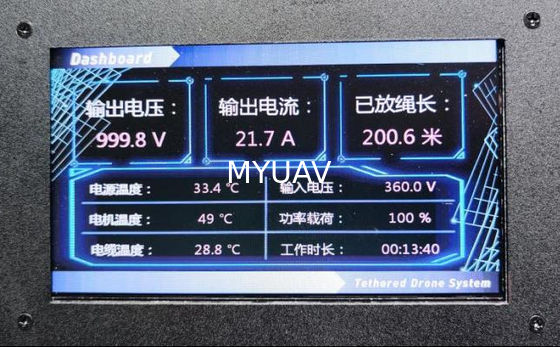

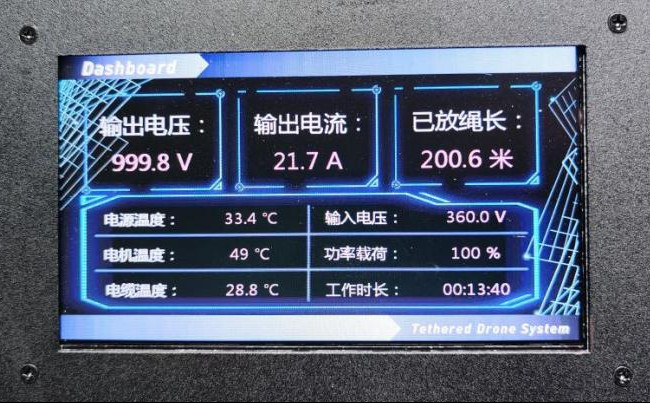

Integrated Ground Tethered Base Station

Air power module

Performance indicators

_{1.1. Environmental characteristics}

_{1.2. Technical parameters}

Payload

4. Equipment Operation Procedure

• ^{Check that the equipment is complete: Check that the main body of the drone, the cleaning device, the control system and the guards are intact.}
• ^{Install the cleaning device: Install the cleaning device to the main body of the drone and make sure it is firmly connected.}
• ^{Connect the power supply: Connect the battery to the remote control and turn on the power switch.}
• ^{Control the drone flight: Use the remote control to control the drone flight, adjust the flight height, speed and direction as needed.}
• ^{Start cleaning: After determining the cleaning object, switch on the cleaning pump and use the drone to clean the target.}

5. Equipment Maintenance

^{Daily maintenance: after each use, the main body of the drone and the cleaning device should be cleaned to keep the equipment clean and tidy. At the same time, check whether there is any damage or looseness of the parts and deal with them in time.}

^{Regular Maintenance: It is recommended to carry out a comprehensive equipment inspection and maintenance once a month, including replacing worn parts and cleaning the internal circuit boards.}

6. Principles of use

• ^{_{When in use, the power supply should maintain good ventilation and heat dissipation; the air passage of the module unit should not be blocked;}}
• ^{_{The power supply should be used under the environmental conditions specified in the specification;}}
• ^{_{Do not adjust the potentiometer in the power supply at will;}}
• ^{_{Do not operate in the presence of volatile gases or flammable environments;}}
• ^{_{Do not remove the outer cover or touch the internal parts under any circumstances;}}
• ^{_{For safety reasons, do not perform internal warranty or parts replacement alone;}}
• ^{_{The power supply must be safely insulated when in use, and any side of it must be at least 8mm away from the outer metal shell; if it is less than 8mm, a PVC sheet with a thickness of more than 1mm must be used to strengthen the insulation;}}
• ^{_{If you notice smoke or unpleasant odor during startup or use, turn off the power immediately.}}

7. Warranty

_{The warranty period for this product is 1 year. During the warranty period, any natural damage under normal use will be repaired free of charge by our company;}

_{However, if any of the following conditions occur, the warranty will not apply:}

_{1. Damage caused by unauthorized repair without the permission of the company;}

_{2. Any addition or modification;}

_{3. Improper operation or use;}

_{4.Abnormal environmental conditions, exceeding specification requirements, causing damage;}

_{5. Deliberate human damage;}

_{6. Damage caused by force majeure natural disasters.}

8. Repair scope

_{If the power supply fails to operate normally during the warranty period due to errors in materials or manufacturing technology, our company will provide free repair or replacement. The repair service will include various labor services and any necessary adjustments or replacement parts.}

9. Restrictions

• _{If you fail to pack the product in the same way as when you send it back and it is damaged during transportation, the warranty will also be void.}
• _{Our company will not be responsible for any of the following:}

• _{Damage caused by fire, earthquake, riot, war, terrorist attack, third party's behavior and other events;}
• _{Damage caused by the customer's intentional or negligent act, misuse, or use under other abnormal conditions;}
• _{Incidental damages arising from the use or performance of this product [interruption of business, loss of business profits (including loss of use of equipment, costs of replacing any equipment, devices or services, or claims by your customers)];}
• _{Any damage caused by using the method other than that specified in this manual;}
• _{Regardless of any circumstances, such as operation, cleaning or maintenance, please be sure to comply with the safety rules stipulated in Item 7. If you violate them and cause safety concerns beyond the original design and manufacturing, our company will not be responsible.}

_{MyUAV FC30M Tethered Drone System FAQs}

_{Q1: What is the MyUAV FC30M Tethered Drone System?}

_{A1: The MyUAV FC30M Tethered Drone System is a cutting-edge aerial platform designed for long-duration flights and high-altitude operations. It combines a lightweight, durable drone with a sophisticated tethering system that provides continuous power from the ground, enabling the drone to remain airborne for extended periods without the need for battery replacements.}

_{Q2: What are the key features of the FC30M Tethered Drone System?}

_{A2: Key features of the FC30M include:}

• _{Extended Flight Duration: Capable of maintaining flight for hours due to its tethered power supply.}
• _{High Altitude Operation: Can operate at altitudes up to 240 meters (787 feet).}
• _{Lightweight Design: The power station weighs only 6.5 kg (14.3 lbs), reducing the overall weight and increasing payload capacity.}
• _{Safety and Reliability: Equipped with advanced power management and isolation circuit design to ensure safe high-voltage transmission.}
• _{Redundant Load Design: Ensures a stable long-term power supply and prolonged flight time.}

_{Q3: What types of applications is the FC30M suitable for?}

_{A3: The FC30M is highly versatile and can be used in a variety of applications, including:}

• _{Surveillance and Security: Continuous monitoring of large areas or critical infrastructure.}
• _{Firefighting: Equipped with specialized fire extinguishing equipment to assist in firefighting efforts.}
• _{Search and Rescue: Aids in locating missing persons or providing assistance in disaster-stricken areas.}
• _{Inspection and Maintenance: Ideal for inspecting tall structures such as bridges, wind turbines, and communication towers.}
• _{Environmental Monitoring: Collects data on air quality, pollution levels, and climate conditions.}

_{Q4: How does the FC30M handle adverse weather conditions, especially rain?}

_{A4: The FC30M is designed with robust weather resistance, allowing it to operate effectively in light rain and moderate winds. However, it is not recommended for use in severe weather conditions such as heavy rain, thunderstorms, or high winds to ensure the safety of the drone and the integrity of the mission.}

_{Q5: What is the payload capacity of the FC30M?}

_{A5: The FC30M has a significant payload capacity, which can be further enhanced by the lightweight design of the power station. It can carry various payloads, such as high-resolution cameras, thermal imaging devices, and other specialized sensors, depending on the mission requirements.}

_{Q6: How easy is it to set up and operate the FC30M?}

_{A6: The FC30M is designed to be user-friendly. The setup process is straightforward, and the system comes with intuitive controls and a user-friendly interface. MyUAV also offers comprehensive training programs and customer support to ensure users can operate the drone safely and effectively.}
