M-23X Drone Portable Tethered Power Station BY MYUAV Uav
| Place of Origin | CHINA |
|---|---|
| Brand Name | MYUAV |
| Model Number | M-23X |
| Minimum Order Quantity | 1 unit |
| Price | 39000usd |
| Packaging Details | carton packaging |
| Delivery Time | 2-3weeks |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 3 unit |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Dimensions | 422mm(L) X 225mm(W) X 350mm(H） | Cable Length | 50m/100m |
|---|---|---|---|
| Weight | ≤14kg（including 100m Cable） | Cable Winch | Auto & Manual |
| Rated Power | 3KW | Rated Input Voltage | ：AC 200V ~264V |
| Output Voltage | DC 300V ~420V | Output Current | ≤8.5A |
| Highlight | M-23X Tethered Power Station,Portable Tethered Power Station,MYUAV Uav Tethered Power Station |
||
Product Description
M-23X Tethered System
1. Introduction
This UAV tethering system can be adapted to multiple UAV platforms, including DJIM200/M210, Gou2 and M300 UAVs, as well as UAVs within 2500W that support 6S or 12S power supply, by simply replacing the on-board module with one adapted to different UAVs.
The system consists of an on-board module and a ground tethered generator. Through high-performance alloy cables, the power is transmitted from the ground to the on-board module, and converted into the DC 12S/6S voltage used by the UAV, which can continuously supply power to the UAV.
It can be directly connected to a generator or 220V utility power, which allows the UAV to achieve ultra-long endurance and stay in the air on a safe basis.
At the same time, the onboard module provides 48V/24V power supply interface (automatically switching between battery and power supply), which can be used by other onboard pods, such as mounting lights to realize emergency lighting at night, mounting relay to restore communication or extend the communication distance, and mounting camera pods to realize long time monitoring.
2.Product Features
▶ All aluminum alloy shell, small size, light weight, total weight 14kg.
▶ Simple operation, one key to start the high-voltage output, one key to automatically retract the line.
▶ No need to change the aircraft, directly install the on-board terminal module can be used.
▶ Shell color and text language support bulk customization.
▶ Two transportation options: backpack or trailer.

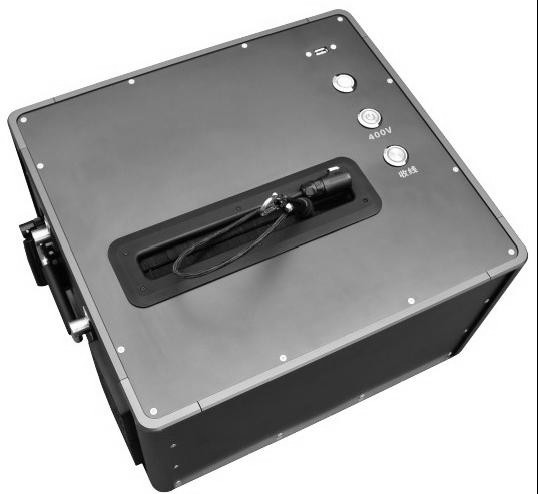

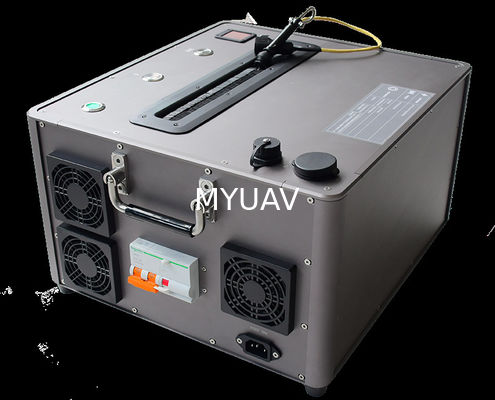

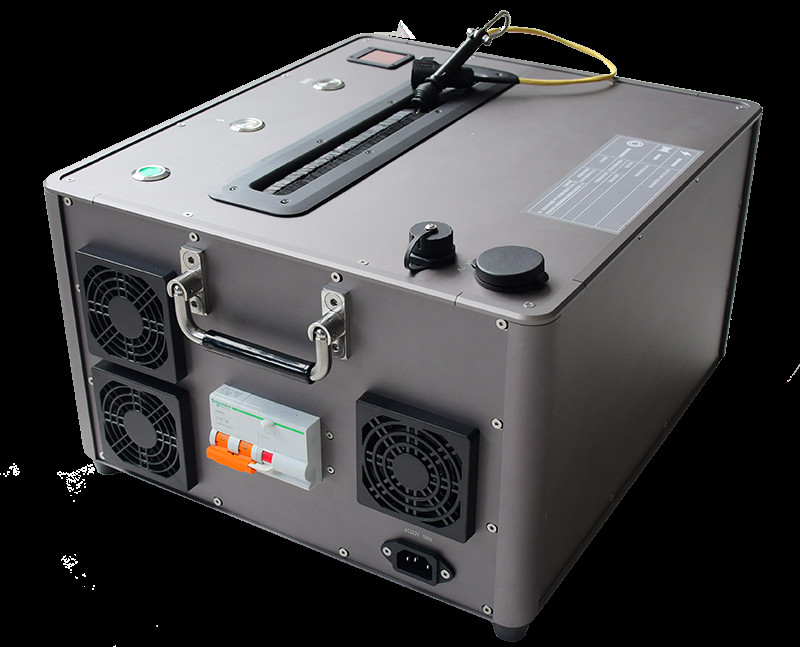

3. Ground base station parameters
Cable length 100m
Take-up and put-down mode manual + automatic
Product size 422 X 350X 225mm
Product weight 13.4kg
Rated power. 3000w
Input Interface Support 220V utility input
Plug industrial grade aviation plug
Output voltage 300-420VDC;
Output current ≥8.5A;
Operating temperature -20°C~+55°C
Continuous output 8h
Adopting one-piece machine molding method, with portable handle, internal contains automatic take-up system, power supply system, power management system, with air safety switch and leakage protection switch and current limiting protector, with the status of the function of the prompt light;
Simple operation, power supply one key start and stop, automatic take-up mode one key start and stop, equipped with manual take-up handle;
Interface configuration: with DC5VUSB night lighting, TYPE-C for OTG upgrades and equipment detailed data real-time view, reserved interface can be customized to upgrade fiber optic communications;
Display: ≤ 1.5 inch, can display the output current, output voltage, output power, input voltage, temperature, power status, automatic winding status;
Safety:
1. When the tethered power supply is abnormally interrupted, it can be automatically switched to the on-board power supply, and can still fly and land normally.
2. Alarm function: high output voltage alarm, low output voltage alarm, servo failure alarm, servo communication failure alarm, voice module communication failure alarm, temperature module communication failure alarm, high chassis temperature alarm, high current alarm.
3. Power-on self-test function: before starting, the system will check whether the cable power supply and the take-up button are in the off state.
4. Adaptive voltage adjustment: the system can adjust the output voltage according to the power used by the load, the adjustment range is 400-420VDC.
5. Adaptive current adjustment: the system can adjust the output current according to the power of the load, the adjustment range is 0-9A.
6. Equipped with casters with bearings and telescopic handles air box.

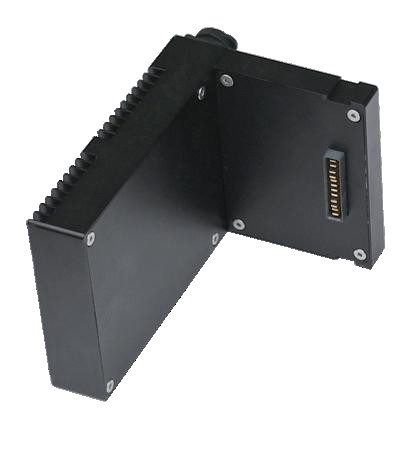

4.Air power parameters
Product size 145X91 X 93mm
Product weight 500g.
Rated power 2500w
Provide DC48V power supply interface, with over-current protection, over-voltage protection, short-circuit protection, over-temperature protection; no need to change the flight battery, plug and play.
FAQ
Q1: What is the primary purpose of the M-23X Tethered System?
A1:The M-23X Tethered System is primarily designed to provide long duration aerial surveillance, communications relay, and environmental monitoring missions. It is connected to a ground station via a lightweight but robust cable that not only powers the UAV but also transmits data, allowing the M-23X to remain in the air for hours or even days, greatly extending its operational time and making it particularly suitable for mission.
Q2: What is the maximum flight altitude of the M-23X tether system?
A2: The maximum altitude of the M-23X tethering system depends on the type and length of the tethering cable used, and can normally reach 100 meters in standard configuration. This altitude is sufficient for most applications such as urban surveillance, large event security or disaster response.
Q3: How does the M-23X tethering system ensure stable operation under adverse weather conditions?
A3:The M-23X tether system utilizes advanced aerodynamic design and material science to enable it to maintain stable flight in a wide range of weather conditions. For example, it is manufactured using high-strength composite materials to resist the effects of strong winds and other weather extremes. In addition, the system is equipped with automatic stabilization control technology that automatically adjusts the flight attitude in the event of unstable airflow, ensuring the safety of the equipment and continuity of operations.
Q4: What are the safety precautions I need to pay attention to when using the M-23X Tethering System?
A4: When using the M-23X Tethering System, users should strictly follow the safety guidelines in the operation manual. This mainly includes, but is not limited to: ensuring that the take-off and landing areas are safe and free from obstacles; checking that all connections are firm and reliable; avoiding operation under severe weather conditions such as thunderstorms and high winds; regularly maintaining and checking the condition of system components, especially the tethering cables; and complying with the regulations of local aviation authorities and obtaining the necessary flight authorizations.
Q5: What types of payloads does the M-23X tethering system support?
A5:The M-23X tethering system is designed to be flexible and capable of supporting a wide range of payload types, including but not limited to HD cameras, thermal imaging cameras, communication relay equipment, etc. These payloads can be customized to suit specific applications. These payloads can be selected and installed according to specific application requirements to achieve different functions, such as video surveillance, night observation, wireless signal enhancement, etc. MYUAV also provides customized services to integrate specific sensors or other devices according to customer's special requirements.
