Commercial Multicopter Drone 20kg Loading 4 Rotor 12S Power System
| Place of Origin | China |
|---|---|
| Brand Name | myuav |
| Certification | MD-20 |
| Model Number | MD-20 |
| Minimum Order Quantity | 1 |
| Packaging Details | case |
| Delivery Time | 7 working days |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type Of Aircraft | Quadruple Wing | Frame Material | Industrial Nylon + Carbon |
|---|---|---|---|
| Arm Storage | Ring Fold | Vehicle Wheelbase | 1380mm |
| Ground Clearance | 628mm | Pitch | 36120 |
| Net Weight | 20kg | Maximum Take-off Weight | 40kg |
| Empty Range (17.5kg) | 36 Min | Load 20kg | 12min |
| Battery | 12S 25000mAh | Maximum Wind Resistance | 13m/s |
| Mapping Protocol | Figure 1 | Communication Distance | 7km (no Mask) |
| The Graph Transfer Point | 2.4 GHz | Operating Temperature | -20—60℃ |
| Positioning System | GPS/RTK | Positioning Accuracy (GPS) | ≤ 0.5m |
| Positioning Accuracy (RTK) | ≤ 0.3m | Maximum Flight Speed | 25m/s |
| Maximum Creep Speed | 10m/s | Maximum Lowering Speed | 6m/s |
| Maximum Angular Speed | 100°/s | Maximum Flight Angle | 35° |
| Maximum Flight Altitude | 5000m | FPV | Standard |
| GPS | Standard | Remote Control With Screen | Standard |
| RTK | Optional | Nacelle | Optional |
| Highlight | FPV Multicopter Drone,Multicopter Drone 20kg,FPV Multicopter |
||
Product Description

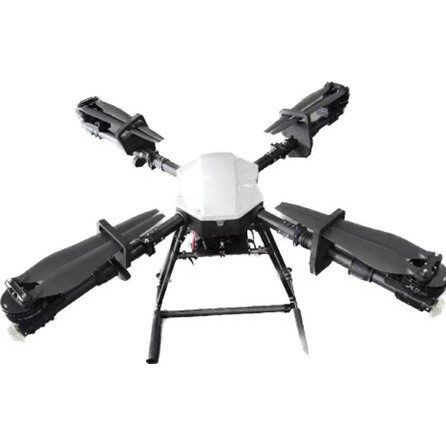

Multicopter Commercial Drone 20kg Loading 4 Rotor 12S
Features:
- Multiple-path loads can be supported simultaneously
- Up to 20kg
- Front FPV lens
- Features 14S power system
- Modular, one-piece chassis
Specification Parameters:
| The type of item | Parameters |
| Type of aircraft | Quadruple wing |
| Frame material | Industrial Nylon + Carbon |
| Arm storage | Ring fold |
| Vehicle wheelbase | 1380mm |
| Ground clearance | 628mm |
| Pitch | 36120 |
| Net weight | 20kg |
| Maximum take-off weight | 40kg |
| Empty range (17.5kg) | 36 min. |
| Load 20kg | 12min |
| Battery | 12S 25000mAh |
| Maximum wind resistance | 13m/s. |
| Mapping protocol | Figure 1 |
| Communication distance | 7km (no mask) |
| The graph transfer point | 2.4 GHz |
| Operating temperature | -20—60℃ |
| Positioning system | GPS/RTK |
| Positioning accuracy (GPS) | ≤ 0.5m |
| Positioning accuracy (RTK) | ≤ 0.3m |
| Maximum flight speed | 25m/s. |
| Maximum creep speed | 10m/s. |
| Maximum lowering speed | 6m/s. |
| Maximum angular speed | 100°/s. |
| Maximum flight angle | 35° |
| Maximum flight altitude | 5000m |
| FPV | Standard |
| GPS | Standard |
| Remote control with screen | Standard |
| RTK | Optional |
| Nacelle | Optional |
| Avoidance radar | Optional |
| Shout | Optional |
| Searchlight | Optional |
| Drop box | Optional |
| Thrower | Optional |
| Mount mode | Standard quick disconnect |
| Battery capacity | 25000mAh |
| Charge time | 80min |
| Net battery weight | 5kg |
| Waterproof bodywork | IP65 |
