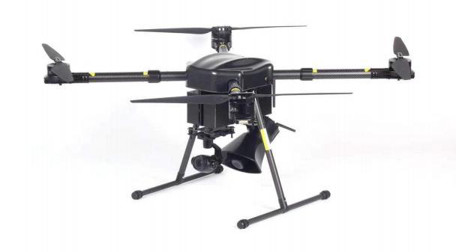

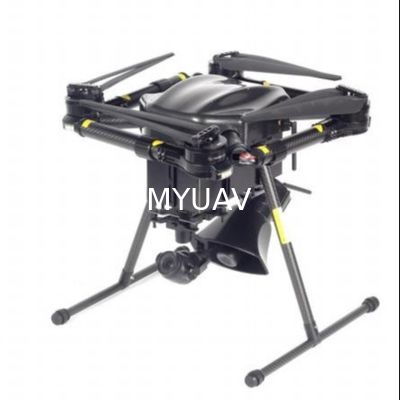

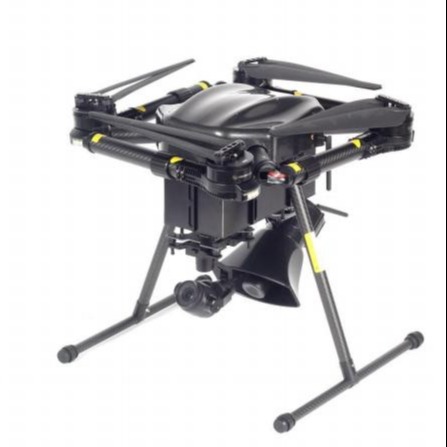

H5 Multifunctional Drone Max 5kg Weight Loading With 4 Motors Tether Adaptive

Place of Origin China
Brand Name myuav
Certification H5
Model Number H5
Minimum Order Quantity 1 epc
Price 4800usd
Packaging Details case
Delivery Time 14 working days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Real-time Video Transmission, Remote Control, Data Storage Dimensions 60cm X 60cm X 120cm
Input 380V AC ±10% 50Hz/60Hz Payload Capacity 5 Kg
Max Flight Time 8 Hours Operating Temperature -10°C To 50°C
Weight 30 Kg Compatibility Compatible With Various Drones
Communication Range 10 Km Output 750V DC / 1000V DC / 18KW
Certifications CE, FCC, RoHS Height 100m/150m
Model TDS-100 Max Tether Length 1000 Meters
Type Ground Station
Highlight

H5 Multifunctional Drone

,

5kg Weight Loading Multifunctional Drone

,

4 Motors Tether Adaptive Drone

Leave a Message
Product Description

Product Description



   This drone has the capability to fly either freely or be tethered to a MYUAV tether station.
Tethered drones are often used for various applications such as surveillance, monitoring, and inspection where stable and secure flight is required for an extended period of time. The tether station provides power and data transfer to the drone while it is in flight.
   A tethered drone system typically consists of a drone that is connected to a base station via a tether (a strong cable). The base station provides power to the drone and may also facilitate data transfer and communication between the drone and the ground station. Tethered drone systems have a few advantages over traditional free-flying drones, such as extended flight times, increased stability in windy conditions, and the ability to operate in restricted airspaces.





Drone technical parameters table



Model H5
Product material Carbon fiber + aviation aluminum alloy
Number of rotors 4 rotors
Wheelbase ≤1000mm
Expanded size (mm) 760*760*440
Folding size (mm) 450*450*440
Empty machine dead weight ≤6KG (excluding battery weight)
Maximum load ≤5KG
Maximum takeoff weight ≤18.2KG
Maximum flight speed ≤18m/s
Maximum ascent speed ≤5m/s
Maximum descent speed ≤4m/s
Maximum takeoff altitude 3000m
No-load battery life ≥40min
GPS GPS positioning
power system Efficient FOC power
Propeller size 24-inch folding paddle
Power Battery 12S 22000mAh*1
Charger Smart super fast charging
Remote control The resolution is 1920*1080 integrated display 5.5-inch screen
Remote control standby time 8-12 hours
Figure, digital transmission distance 5km-10km (can be upgraded)
Safe wind speed ≤Level 6
Operating temperature -20℃ to 50℃
Body protection level IP65







OUR ADVANTAGES:


1. It has automatic break-point memory. It can memory the position automatically when then pesticide was finished.Make sure the continuities of spraying.


2.Automatic action mode. One key taking off, One key back landing.


3. Flying as the planing route.


4. Powerful and long-life pump, better atomization function with big pressure.


5.Rtk technology, fixed position accurately . And integrate GPS,Beidou,Glonass
position systems to make more safety work.


6. Quick released structure, easy to maintain and easy to transport.


7. Excellent black box function,automatically record the flight data.


8. Six levels of wind resistance,rain proof,dust proof.


9. Brushless motor, long-life and easy to maintain. 8 points positioning,stable taking-off.



FAQ:

Q1. Are you a sprayer drone factory?

A1: Yes, we are a professional manufacturer of sprayer drones.

Our main products are agricultural sprayer drones and spreader drones. thermal fogger drones, biological control drones.

Q2. Is the UAV sprayer drone ready to fly?

A2: Yes. Before dispatch, JOYANCE assembles all the parts and set all the parameters. Every drone is 100% flight tested and has strict quality control.

Q3. What`s your MOQ for an agricultural drone?

A3: MOQ ≥1. More than 100 units of order is available. Besides, we are looking for dealers and agents all over the word. Welcome to contact us for more details.

Q4. What`s the delivery time of the sprayer drone?

A4: 7 days for one, please contact us for mass order.

Q5. What`s your payment term?

A5: 50% payment as deposit, balance before delivery.
